Plan Description

This barndominium design floor plan is 2511 sq ft and has 4 bedrooms and 3 bathrooms.

Floor Plans

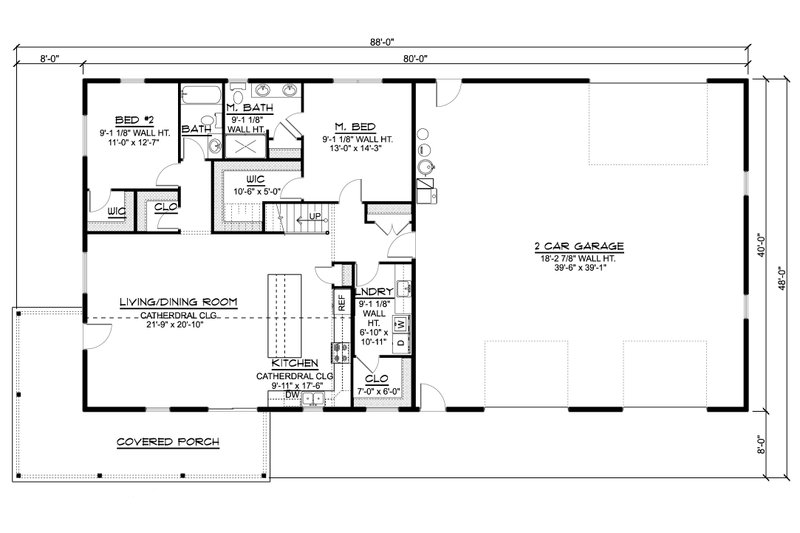

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

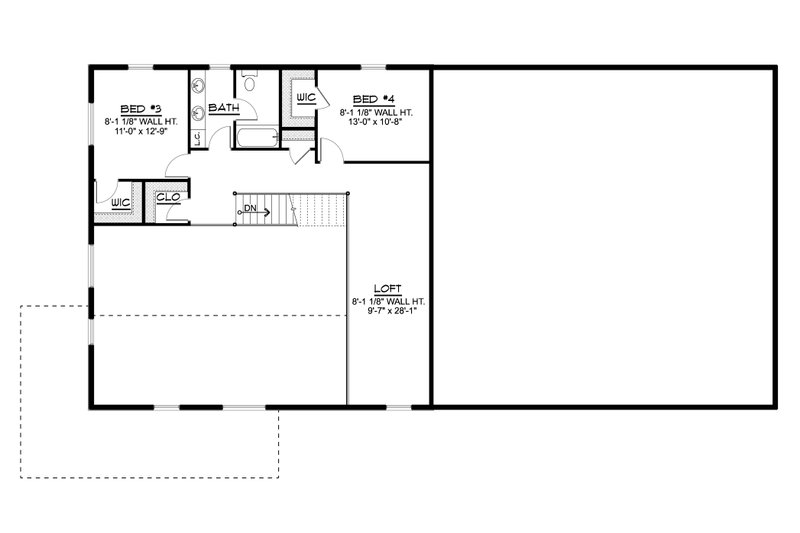

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 48'

Height : 25' 6"

Width : 88'

Area

Garage : 1600 sq/ft

Main Floor : 1600 sq/ft

Porch : 336 sq/ft

Upper Floor : 911 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 18' 3"

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 4/12

Roof Framing : Truss

Roof Load : 30 psf

Roof Type : Metal Roof

Exterior Wall Framing

Exterior Wall Finish : Vertical Metal Siding

Framing : 2x6

Insulation : R-19

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Great Room Living Room

Loft

Garage Features

Front Entry Garage

Rear Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Wrap Around Porch

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
