Plan Description
This stunning modern house plan design is sure to be the talk of the town with its beautiful arched covered porch and stately stone based columns. Step into the spacious Great Room with a fireplace for cozy evenings spent with loved ones. Arched pass-throughs on either side of the fireplace lead you into the Kitchen and another set of pass-throughs lead into the Dining Room. On the left side of the home is the Master Suite with a Master Bath complete with a whirlpool tub, separate glass shower, duel vanity and a large walk-in closet. You'll also find Bedrooms 2 and 3 along with a full bath on this side of the home. On the right side of the house is Bedroom 4 which can also be used as a convenient Home Office and the Laundry Room which has plenty of counter space.
Floor Plans

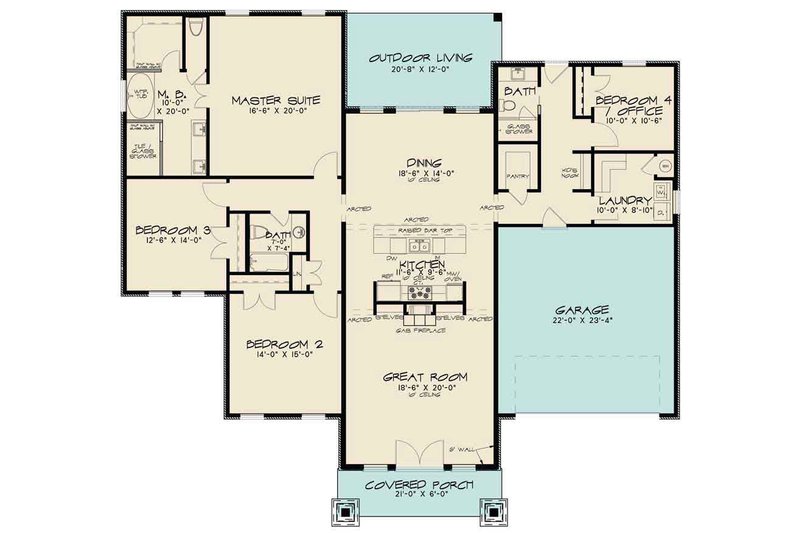

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth: 62' 10"
Height: 16'
Width: 69'
Area
Garage: 529 sq/ft
Main Floor: 2506 sq/ft
Porch: 347 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling: 9'
Roof
Primary Pitch: 3:12
Roof Framing: Stick
Roof Load: 45lbs.
Roof Type: Shingle
Exterior Wall Framing
Framing: 2X4
Insulation: R13
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- Floor Plan(s): Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Exterior Elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Overhead Roof Plan(s): This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Other Note(s): These are included for many interior and exterior conditions that require more specific information for their construction.
