Plan Description
This beautiful coastal cottage welcomes you with its semi-circle courtyard and elevated front porch. A columned front porch captures coastal breezes. Double glass doors open to the foyer, while taking in views of the spacious living area. A 12-foot wall of glass pocketing sliders open up the beautiful covered lanai. This makes for a perfect indoor/outdoor entertainment zone. The dining room also opens to the lanai and is convenient to the kitchen and powder bath just beyond the stairs. The gourmet kitchen has a large eat-at-island for quick meals and a corner pantry. Just around the corner is the laundry with barn door entry and stacked washer/dryer. Two guest suites flank the front entrance, each with its own private bath. The owner’s suite is secluded to the entire upstairs. A vaulted ceiling adds drama to the spacious bedroom with beautiful views from the triple-set of rear windows. The roomy his and hers walk-in closets precede the spacious bath. A free standing spa tub takes center stage upon entering the owner’s bath. Dual sink vanities, a walk-in shower and private privy complete the elevated experience. The lower level provides two garage doors and plenty of storage for tandem parking and recreation vehicles. The outdoor kitchen is tucked into the lower lanai corner closest to the stairs.
Floor Plans

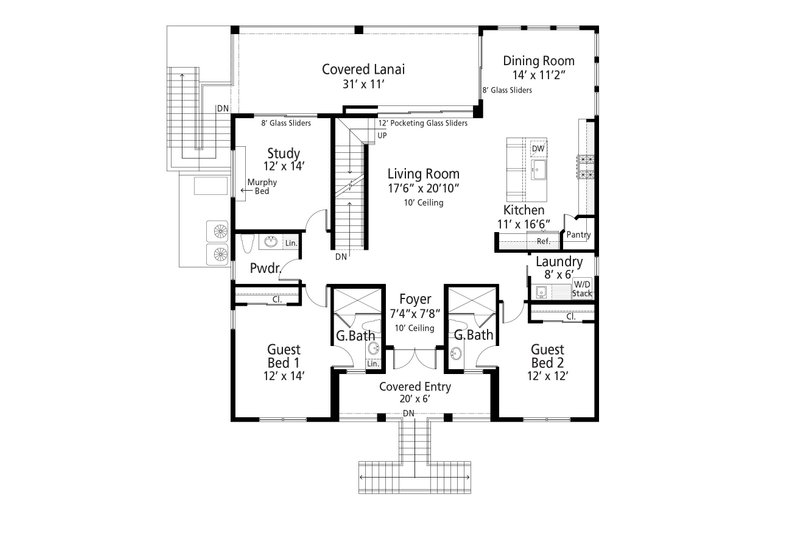

Floor Plan - Main Floor

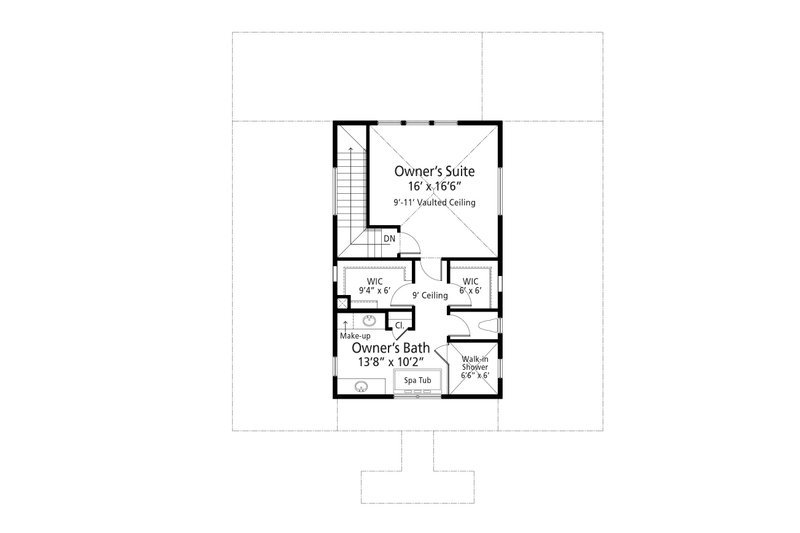

Floor Plan - Upper Floor

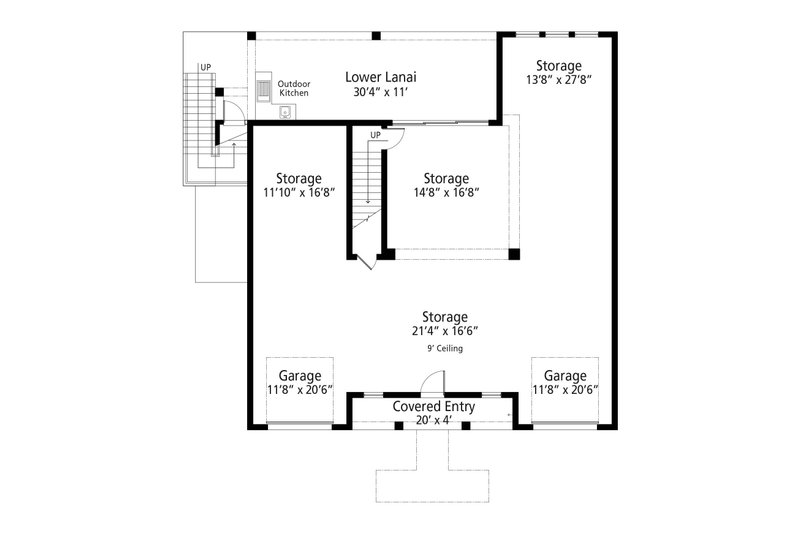

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 58' 6"
Height : 34' 11"
Width : 54'
Area
Garage : 1856 sq/ft
Lower Floor : 1856 sq/ft
Main Floor : 1812 sq/ft
Porch : 898 sq/ft
Upper Floor : 653 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 9'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 6/12
Roof Framing : Truss
Roof Type : gable
Secondary Pitch : 3/12
Exterior Wall Framing
Exterior Wall Finish : siding
Framing : 2x6
Bedroom Features
Guest Suite
Main Floor Bedrooms
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Storage Area
Unfinished Future Space
Workshop
Garage Features
Front Entry Garage
Garage Under
Tandem Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Screened Porch
More
Additional Half Bath
Suited For Vacation Home
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
- Cover Sheet
- The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
-
Wall Sections
- The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
-
Foundation Plan
- The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
-
Second floor framing (where appropriate)
- The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
-
Floor Plans
- The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
-
Roof Plan & Soffit (Chase Layout) Plan
- The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
-
Reflected Ceiling Plan
- The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
-
Exterior Elevations
- The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
-
Cross Section & Interior Elevations
- The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design.
-
Electrical Plan
- The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
