PLAN 117-941

Home > Style > Cabin

Key Specs

2358
sq ft

2
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

This cabin design floor plan is 2358 sq ft and has 2 bedrooms and 3 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

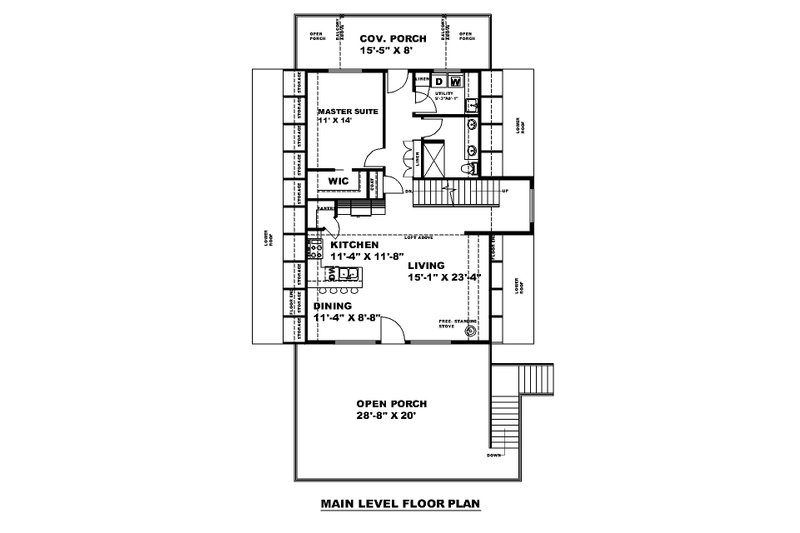

House Plan Design - Cabin Floor Plan - Main Floor Plan #117-941

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Lower Floor

Reverse

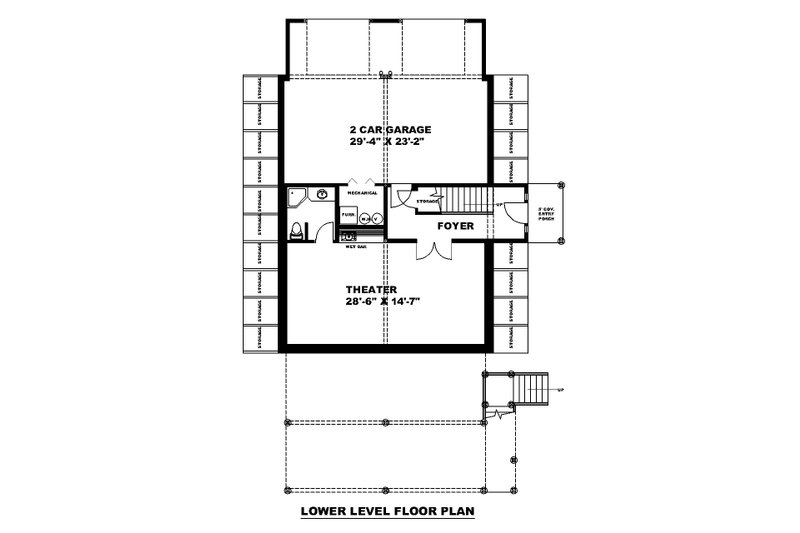

House Plan Design - Cabin Floor Plan - Lower Floor Plan #117-941

Floor Plan - Upper Floor

Reverse

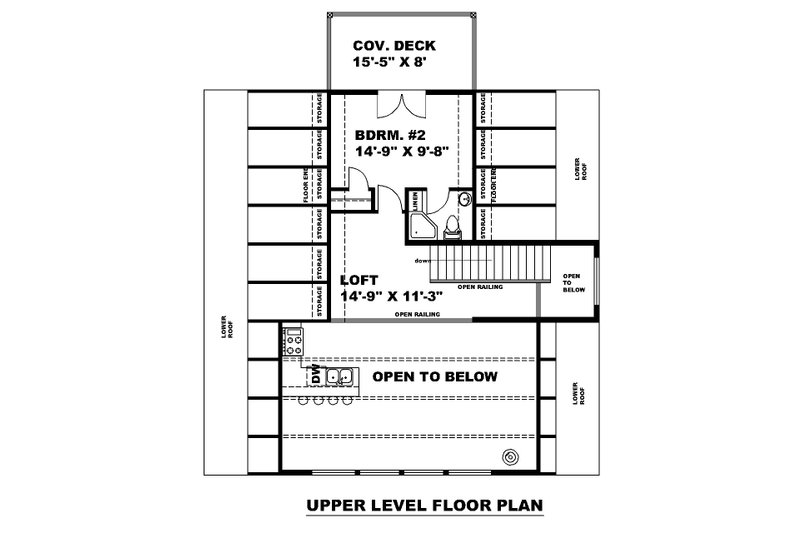

House Plan Design - Cabin Floor Plan - Upper Floor Plan #117-941

Full Specs & Features

Dimension

Depth : 48'

Height : 39' 2"

Width : 41'

Area

Garage : 753 sq/ft

Lower Floor : 759 sq/ft

Main Floor : 1162 sq/ft

Upper Floor : 437 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Main level vaulted: 3'-3" to 24'-6" Upper level vaulted: 8' to 15'-6"

Lower Ceiling : 9'

Roof

Primary Pitch : 21/12

Roof Framing : SIPs

Secondary Pitch : 7/12

Exterior Wall Framing

Framing : 2x6

Bedroom Features

Main Floor Bedrooms

Split Bedrooms

Upstairs Bedrooms

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Loft

Main Floor Laundry

Media Room

Garage Features

Garage Under

Rear Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Balcony

Covered Rear Porch

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-528-8070

Plan Set

5 Copy Set:
$1195.00

5 printed plan sets mailed to you.

CAD and PDF Set:
$1295.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy and PDF Set:
$1445.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build:
$1995.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
