Key Specs
2335
sq ft
4
Beds
3
Baths
1
Floors
2
Garages
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.Need a quote fast? Call us at 1-800-528-8070.
Floor Plans

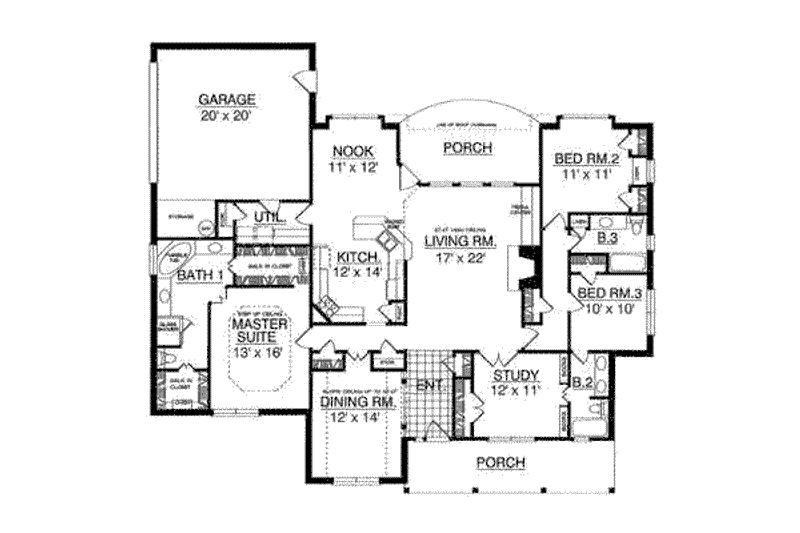

Floor Plan - Main Floor Plan
Full Specs & Features
Dimension
Depth : 59' 6"
Height : 22' 5"
Width : 65' 10"
Height : 22' 5"
Width : 65' 10"
Area
First Floor: 2335 sq/ft height 8'
Garage: 481 sq/ft height 8'
Porch: 370 sq/ft
Garage: 481 sq/ft height 8'
Porch: 370 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 8:12
Primary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Breakfast Nook
Additional Room Features
Den Office Study Computer
Great Room Living Room
Storage Area
Great Room Living Room
Storage Area
Garage Features
Rear Garage
Side Entry Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
Rooms
Bedroom 2:
121 sq/ft width 11' x depth 11'
Bedroom 3:
100 sq/ft width 10' x depth 10'
Bedroom 4:
132 sq/ft width 12' x depth 11'
Garage:
400 sq/ft width 20' x depth 20'
Kitchen:
168 sq/ft width 12' x depth 14'
Living Room:
374 sq/ft width 17' x depth 22'
Master Suite:
208 sq/ft width 13' x depth 16'
Nook:
126 sq/ft width 11' x depth 11' 6"
