Key Specs
2328
sq ft
3
Beds
2.5
Baths
1
Floors
3
Garages
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.Need a quote fast? Call us at 1-800-528-8070.
Floor Plans

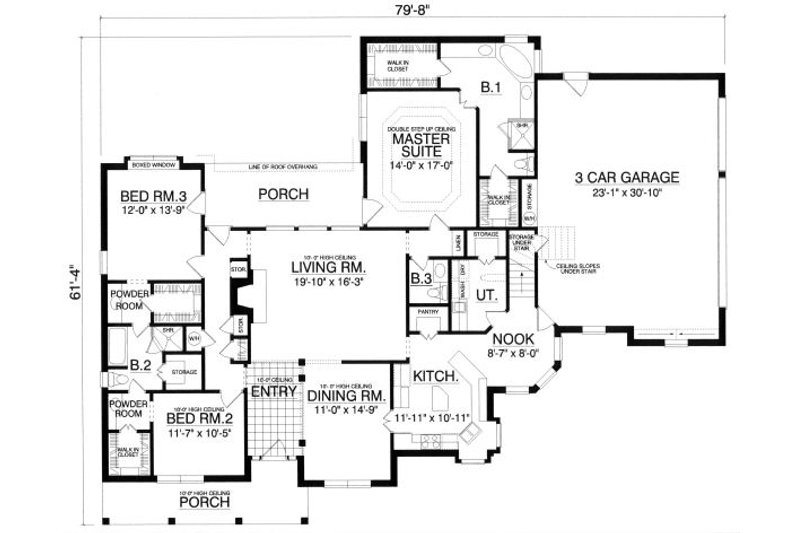

Floor Plan - Main Floor Plan

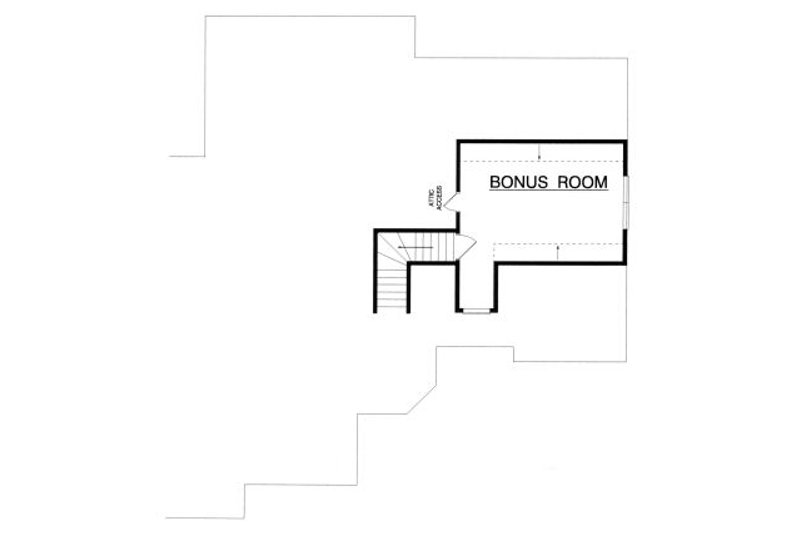

Floor Plan - Upper Floor Plan
Full Specs & Features
Dimension
Depth : 61' 4"
Height : 24' 6"
Width : 79' 8"
Height : 24' 6"
Width : 79' 8"
Area
Bonus: 265 sq/ft
First Floor: 2328 sq/ft
Garage: 783 sq/ft
Porch: 370 sq/ft
First Floor: 2328 sq/ft
Garage: 783 sq/ft
Porch: 370 sq/ft
Ceiling
Main Ceiling : 10'
Roof
Roof Framing : Truss
Primary Pitch : 10:12
Secondary Pitch : 5:12
Primary Pitch : 10:12
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Framing : 2"x4"
Rooms
Bedroom 2:
120 sq/ft width 11' 7" x depth 10' 5"
Bedroom 3:
165 sq/ft width 12' x depth 13' 9"
Dining Room:
162 sq/ft width 11' x depth 14' 9"
Garage:
711 sq/ft width 23' 1" x depth 30' 10"
Kitchen:
130 sq/ft width 11' 11" x depth 10' 11"
Living Room:
322 sq/ft width 19' 10" x depth 16' 3"
Master Suite:
238 sq/ft width 14' x depth 17'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
| 5 Copy Set
: $785.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $875.00 |
8 printed plan sets mailed to you. |
| Reproducible Set
: $960.00 |
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper. |
| CAD Set
: $1535.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Single Set
: $685.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Additional Options
| Right-Reading Reverse
: 100.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: 50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Mirror Reversed Sets
: 0.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an "unlimited" plan set or a multi-use
license you may only build one home plan from a set of plans. Plans cannot be re-sold.
