PLAN 929-167
Photographs may show modified designs.
- Jump to:
- All (6)
- Floor plans (2)
Get Personalized Help
Key Specs
2182
sq ft
4
Beds
3.5
Baths
2
Floors
0
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTBFALL
Use Code CTBFALL
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 929-167
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description

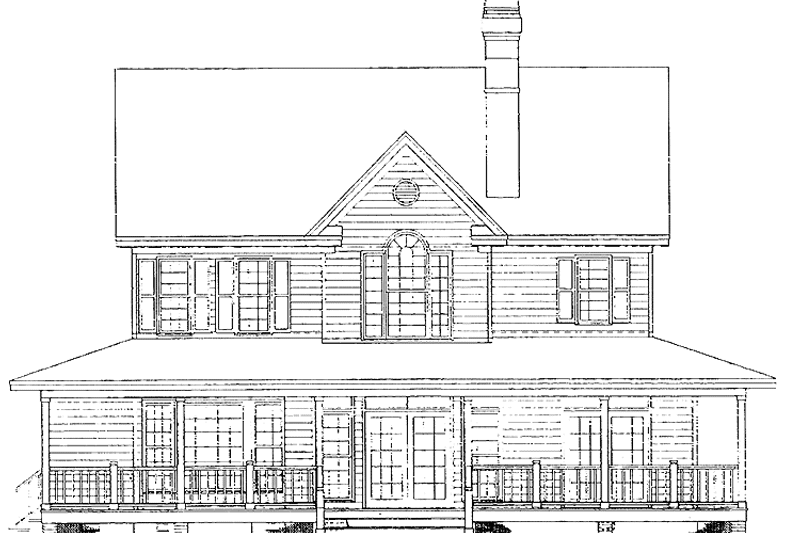

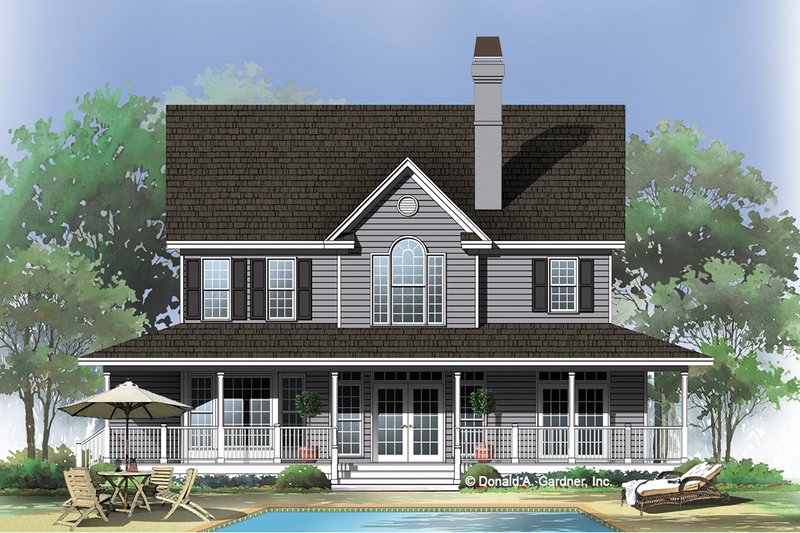

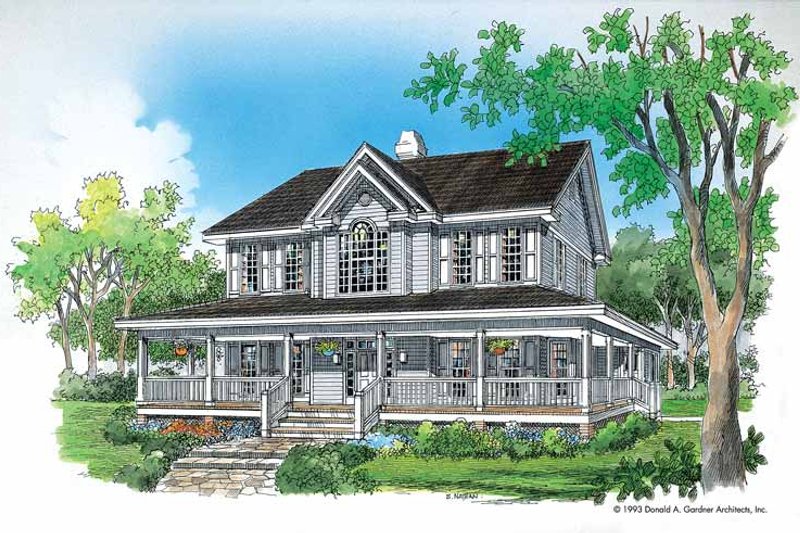

This classy, two-story home with a wraparound covered porch offers a dynamic open floor plan. The entrance foyer and the spacious great room both rise to two stories--a Palladian window at the second level floods these areas with natural light. The kitchen is centrally located for maximum flexibility in layout and, as an added feature, also has a breakfast bar. The large dining room delights with a bay window. The generous master suite has plenty of closet space as well as a bath with a whirlpool tub, a shower, and a double-bowl vanity. On the second level, three bedrooms branch off the balcony that overlooks the great room. One large bedroom contains a private bath and a walk-in closet; the other bedrooms share a full bath.
Floor Plans

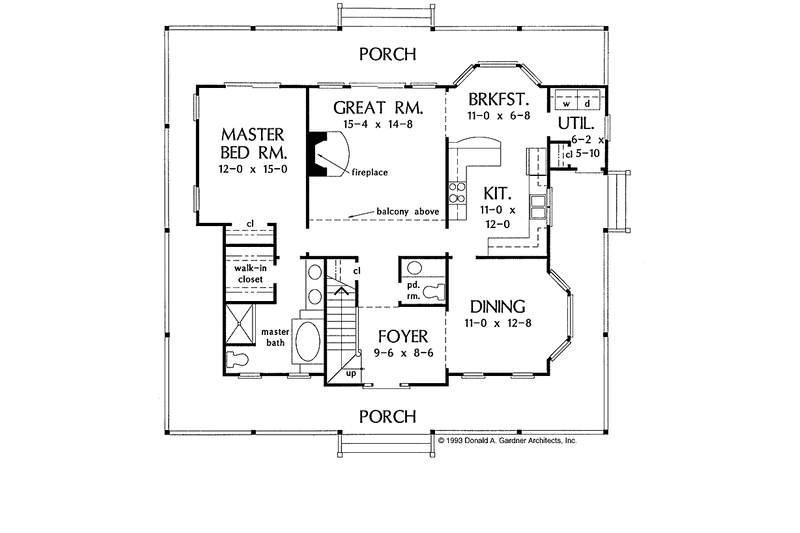

Floor Plan - Main Floor

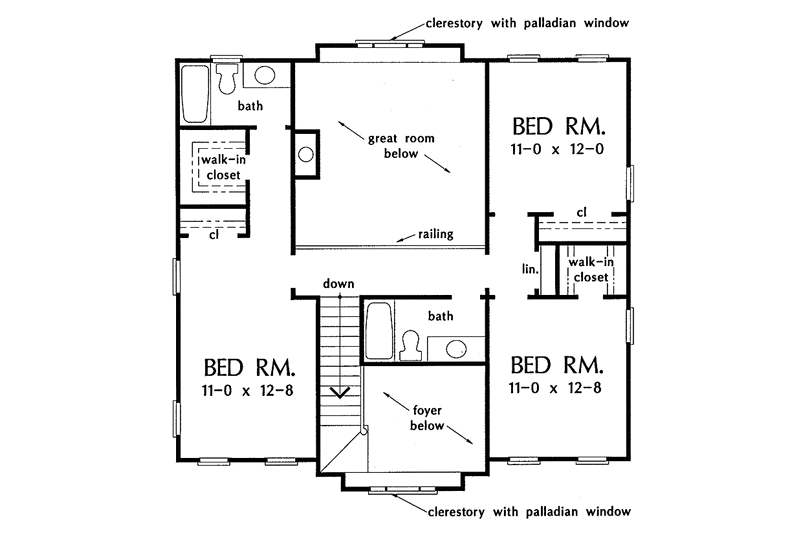

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 45' 4"
Height : 31'
Width : 49' 5"
Area
First Floor: 1346 sq/ft
Second Floor: 836 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Additional Room Features
Great Room Living Room
Outdoor Spaces
Wrap Around Porch
Rooms
Bedroom 2:
132 sq/ft width 11' x depth 12'
Bedroom 3:
139 sq/ft width 11' x depth 12' 8"
Bedroom 4:
139 sq/ft width 11' x depth 12' 8"
Breakfast Room:
73 sq/ft width 11' x depth 6' 8"
Dining Room:
139 sq/ft width 11' x depth 12' 8"
Foyer:
80 sq/ft width 9' 6" x depth 8' 6"
Gathering Room:
224 sq/ft width 15' 4" x depth 14' 8"
Kitchen:
132 sq/ft width 11' x depth 12'
Master Bedroom:
180 sq/ft width 12' x depth 15'
Porch - Front:
322 sq/ft width 49' 8" x depth 6' 6"
Porch - Left:
113 sq/ft width 3' 6" x depth 32' 4"
Porch - Rear:
322 sq/ft width 49' 8" x depth 6' 6"
Porch - Right:
148 sq/ft width 6' 6" x depth 22' 10"
Utility Room:
35 sq/ft width 6' 2" x depth 5' 10"
What's Included In This Plan Set
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
» See important
information before purchasing.
- Cover Sheet: A rendering of the front exterior of the house.
- Foundation Plan(s): This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
- Floor Plan(s): These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Exterior Elevations: Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Interior Elevations: The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Overhead Roof Plan(s): The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Cross Section(s): Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Door / Window Schedule(s): Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Structural Information: Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations. Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Code Drawn To: Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$1625.00
$1625.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Unlimited Build:
$2825.00
$2825.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
$1425.00
$1425.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$430.00
$430.00
Ideal for level lot, lower level of home partially or fully underground.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$430.00
$430.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$265.00
$265.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$340.00
$340.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
