PLAN #132-265
Key Specs
2130
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.Floor Plans

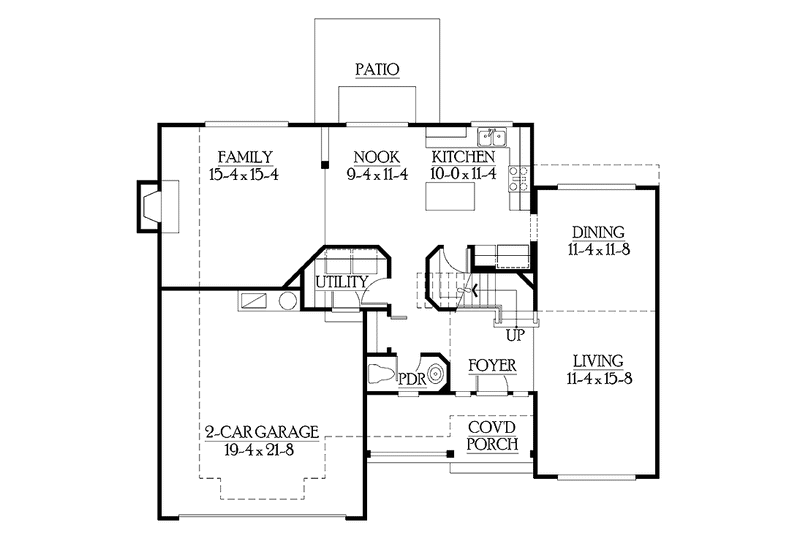

Floor Plan - Main Floor Plan

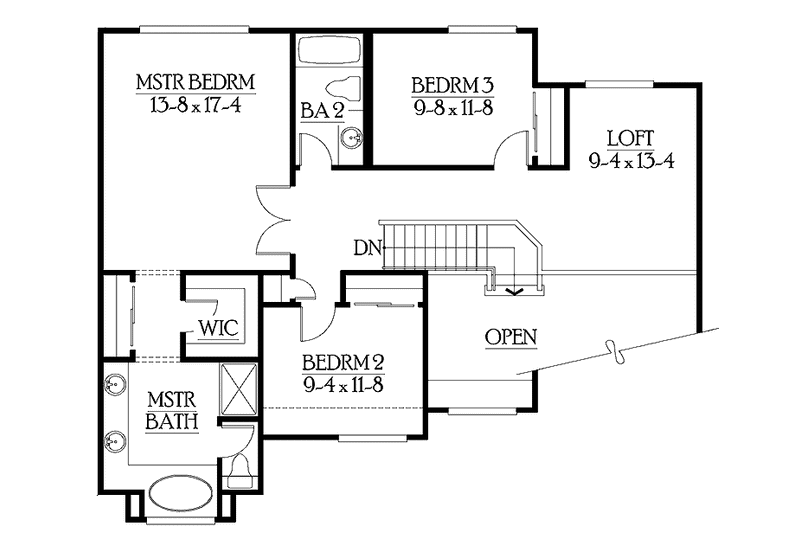

Floor Plan - Upper Floor Plan
Full Specs & Features
Dimension
Depth : 38'
Height : 25' 8"
Width : 48'
Height : 25' 8"
Width : 48'
Area
First Floor: 1085 sq/ft
Garage: 400 sq/ft
Second Floor: 1045 sq/ft
Garage: 400 sq/ft
Second Floor: 1045 sq/ft
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Storage Area
Vaulted / Cathedral Ceilings
Main Floor Laundry
Storage Area
Vaulted / Cathedral Ceilings
Outdoor Spaces
Courtyard
Covered Front Porch
Loft Balcony
Covered Front Porch
Loft Balcony
Rooms
Bedroom 2:
108 sq/ft width 9' 4" x depth 11' 8"
Bedroom 3:
112 sq/ft width 9' 8" x depth 11' 8"
Dining Room:
132 sq/ft width 11' 4" x depth 11' 8"
Family Room:
235 sq/ft width 15' 4" x depth 15' 4"
Garage:
418 sq/ft width 19' 4" x depth 21' 8"
Kitchen:
113 sq/ft width 10' x depth 11' 4"
Living Room:
177 sq/ft width 11' 4" x depth 15' 8"
Loft:
124 sq/ft width 9' 4" x depth 13' 4"
Master Bedroom:
236 sq/ft width 13' 8" x depth 17' 4"
Nook:
105 sq/ft width 9' 4" x depth 11' 4"
What's Included In This Plan Set
Purchasing a CAD set or PDF set gives you a multi-build license. The 5 copy set allows you to build the home one time.
If you are building this plan in the state of Washington, please call us before placing your order.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Plan Set
| PDF Set
: $1170.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set
: $1260.00 |
5 printed plan sets mailed to you. |
| CAD Set
: $2070.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: 135.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: 45.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Home Furniture Planner
: 17.10 |
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing. |
| Lighting Design
: 90.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Audio Video Design
: 90.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
Unless you buy an "unlimited" plan set or a multi-use
license you may only build one home plan from a set of plans. Plans cannot be re-sold.
