PLAN 23-2484
Photographs may show modified designs.
- Jump to:
- All (6)
- Floor plans (3)
Get Personalized Help
Key Specs
2102
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTB2026
Use Code CTB2026
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 23-2484
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Here's a beautiful vacation home or everyday residence for a sloping lot. The main level holds the spacious living/dining room, with a two-sided fireplace shedding warmth here and to the master suite on the other side. A snack-bar counter and walk-in pantry enhance the kitchen, which even offers a view outside from the cooktop. Besides its romantic fireplace, the master suite enjoys a private bath with a large shower and two sinks, and sliding doors to the screened porch. Upstairs, you'll find two more bedrooms, a full bathroom, and a small loft.
Floor Plans

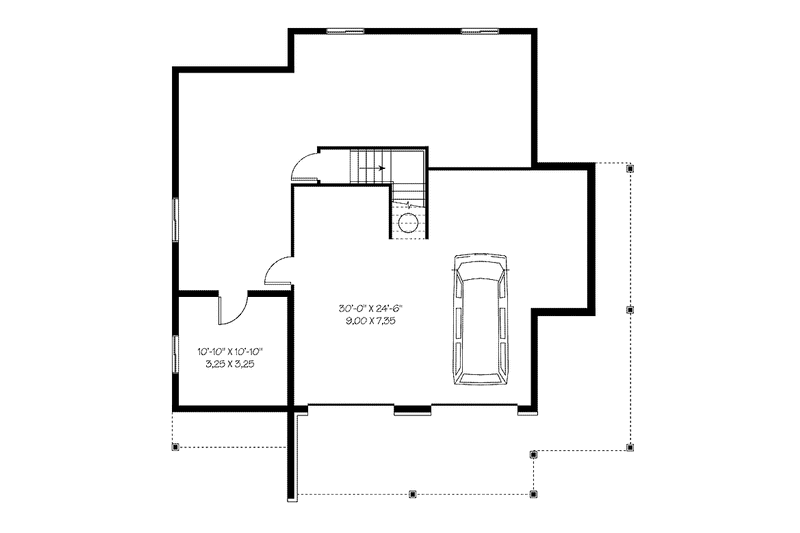

Floor Plan - Lower Floor

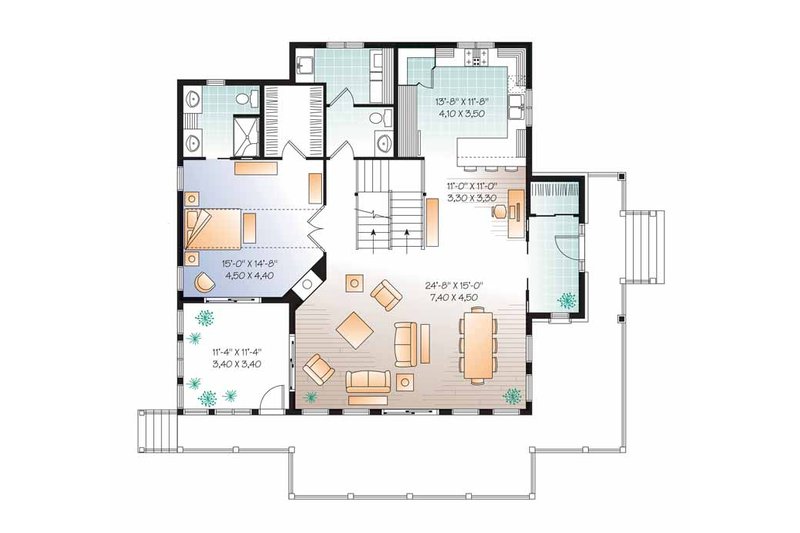

Floor Plan - Main Floor

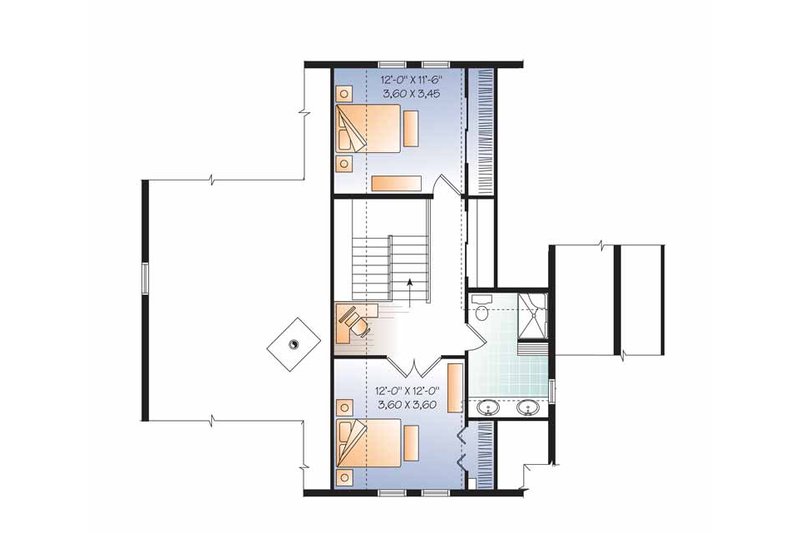

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 40' 4"
Height: 33' 8"
Width: 44'
Area
First Floor: 1424 sq/ft height 9'
Garage: 703 sq/ft
Second Floor: 678 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch: 0:12
Roof Framing: Truss
Roof Type: Asphalt
Exterior Wall Framing
Exterior Wall Finish: Siding/Stone
Framing: Wood - 2x6
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Outdoor Spaces
Wrap Around Porch
Rooms
Bedroom 2:
138 sq/ft width 12' x depth 11' 6"
Bedroom 3:
144 sq/ft width 12' x depth 12'
Garage:
735 sq/ft width 30' x depth 24' 6"
Great Room:
370 sq/ft width 24' 8" x depth 15'
Kitchen:
182 sq/ft width 15' 8" x depth 11' 8"
Master Bedroom:
9 sq/ft width 1' 2" x depth 8'
Office:
121 sq/ft width 11' x depth 11'
Porch - Screened:
128 sq/ft width 11' 4" x depth 11' 4"
