PLAN 406-140

Key Specs

2062
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Floor Plans

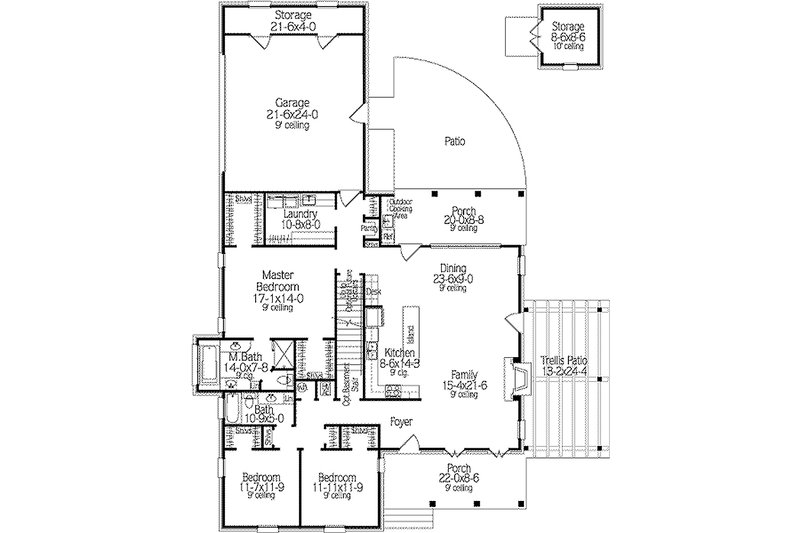

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Other Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 81' 8"
Height : 23'
Width : 64' 2"

Area

Bonus: 1346 sq/ft
First Floor: 2062 sq/ft height 9'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : 2"x4"

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island

Additional Room Features

Great Room Living Room
Storage Area
Unfinished Future Space

Garage Features

Rear Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bathroom 2:

53 sq/ft width 10' 9" x depth 5'

Bedroom 2:

136 sq/ft width 11' 7" x depth 11' 9"

Bedroom 3:

140 sq/ft width 11' 11" x depth 11' 9"

Family Room:

329 sq/ft width 15' 4" x depth 21' 6"

Garage:

516 sq/ft width 21' 6" x depth 24'

Garage Storage:

86 sq/ft width 21' 6" x depth 4'

Kitchen:

121 sq/ft width 8' 6" x depth 14' 3"

Laundry Room:

85 sq/ft width 10' 8" x depth 8'

Master Bathroom:

107 sq/ft width 14' x depth 7' 8"

Master Bedroom:

239 sq/ft width 17' 1" x depth 14'

Patio:

320 sq/ft width 13' 2" x depth 24' 4"

Porch - Front:

187 sq/ft width 22' x depth 8' 6"

Porch - Rear:

173 sq/ft width 20' x depth 8' 8"
