Full Specs & Features
Height : 24'
Width : 55'
Second Floor: 423 sq/ft
Roof Framing : Truss
Roof Load : 30
Framing : 2"x6"
Walk In Closet
Walk In Pantry Cabinet Pantry
Main Floor Laundry
Master Sitting Area
119 sq/ft width 11' x depth 10' 10"
119 sq/ft width 10' 10" x depth 11'
130 sq/ft width 11' x depth 11' 10"
263 sq/ft width 18' 2" x depth 14' 6"
406 sq/ft width 20' 2" x depth 20' 2"
175 sq/ft width 13' x depth 13' 6"
85 sq/ft width 9' 6" x depth 9'
182 sq/ft width 13' x depth 14'
Porch - Screened:
160 sq/ft width 20' x depth 8'
What's Included In This Plan Set
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

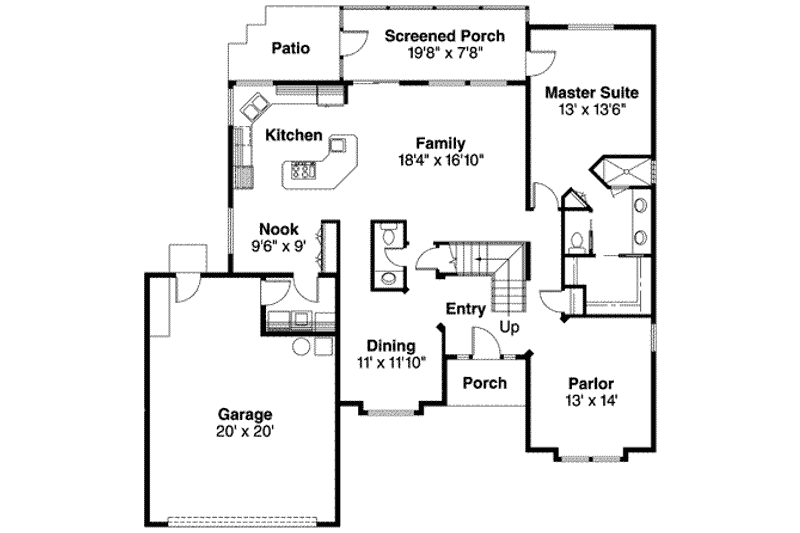

- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

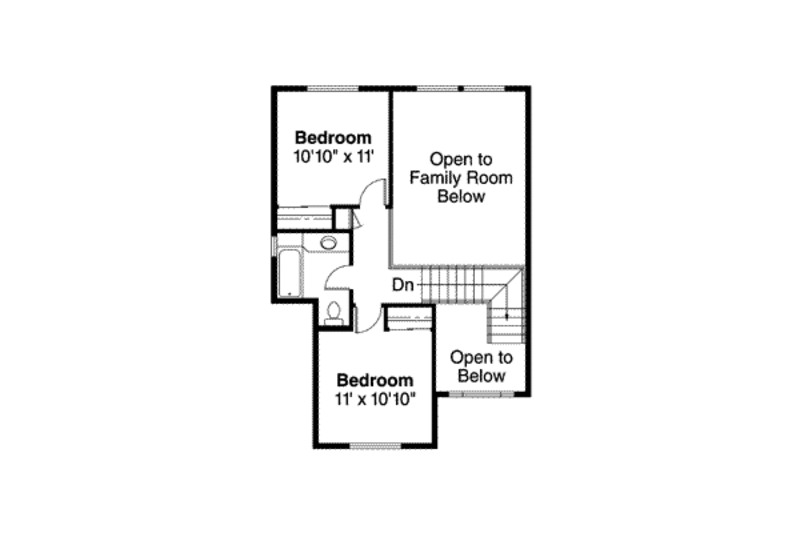

- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
