PLAN 20-2504
Key Specs
2031
sq ft
3
Beds
3.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-528-8070
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 20-2504
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.Plan Description
This plan features three full baths and two half baths.
Full Specs & Features
Dimension
Depth : 43'
Height : 35' 11"
Width : 270'
Height : 35' 11"
Width : 270'
Area
Garage : 507 sq/ft
Lower Floor : 113 sq/ft
Main Floor : 999 sq/ft
Storage : 219 sq/ft
Upper Floor : 919 sq/ft
Lower Floor : 113 sq/ft
Main Floor : 999 sq/ft
Storage : 219 sq/ft
Upper Floor : 919 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 4/12
Roof Framing : Stick - Dimensional Lumber
Secondary Pitch : 4/12
Roof Framing : Stick - Dimensional Lumber
Secondary Pitch : 4/12
Exterior Wall Framing
Exterior Wall Finish : Cement Board / Brick / Siding
Framing : 2x6
Framing : 2x6
Bedroom Features
2 Master Suites
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Mud Room
Storage Area
Main Floor Laundry
Mud Room
Storage Area
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
More
Additional Half Bath
Suited For Vacation Home
Suited For Vacation Home
What's Included In This Plan Set
- Cover Page: Front elevation and informative reference sections including: general notes and design criteria

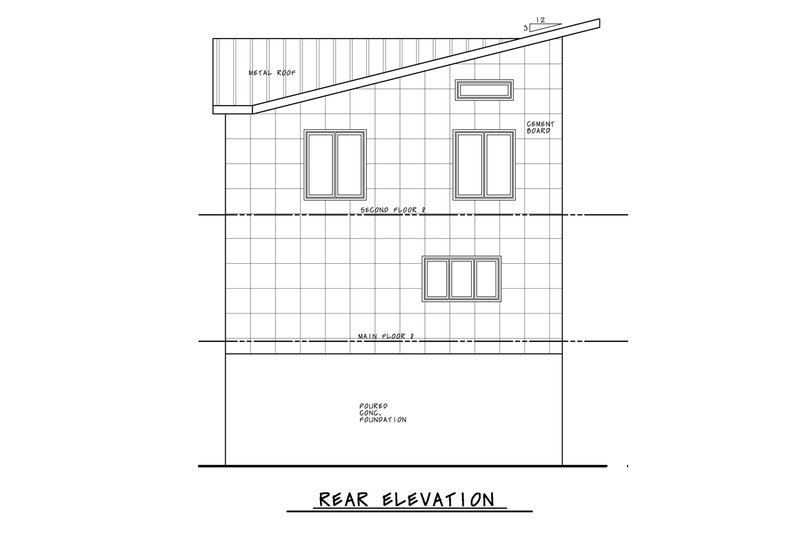

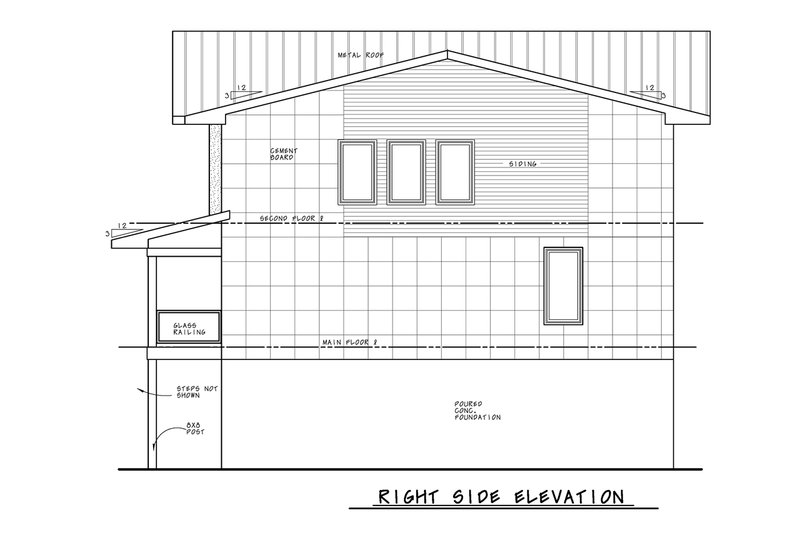

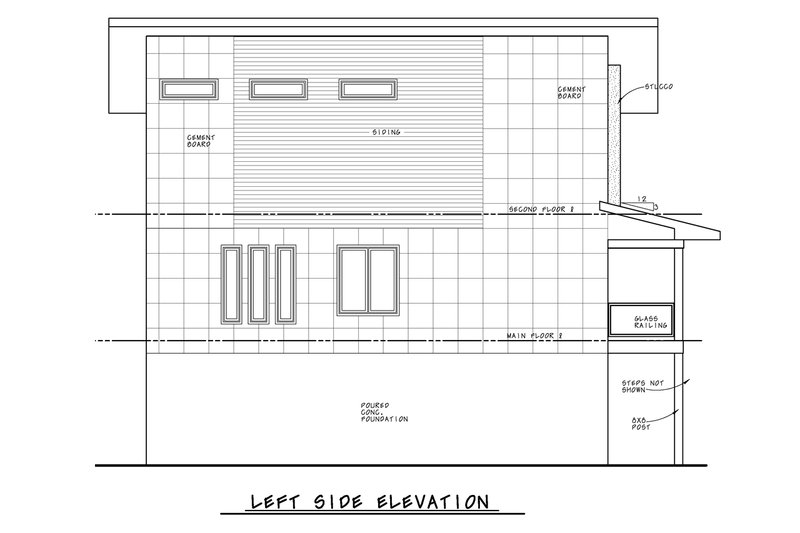

- Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
- Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.

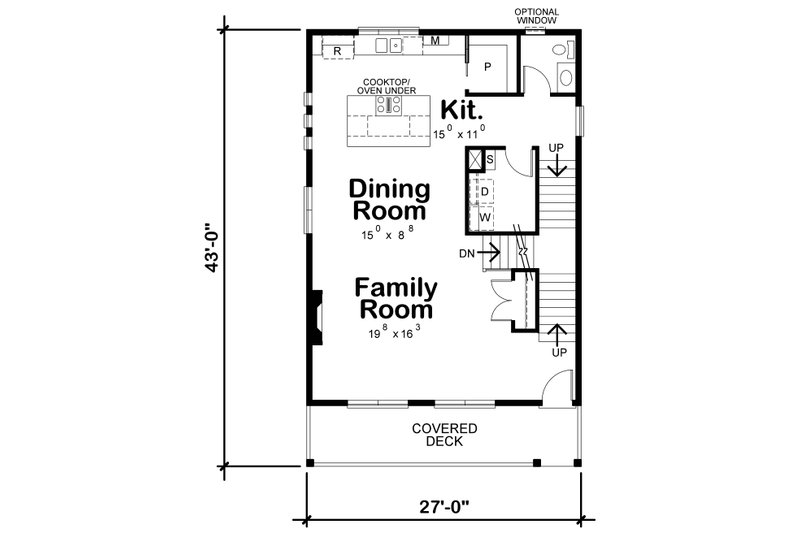

- Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.

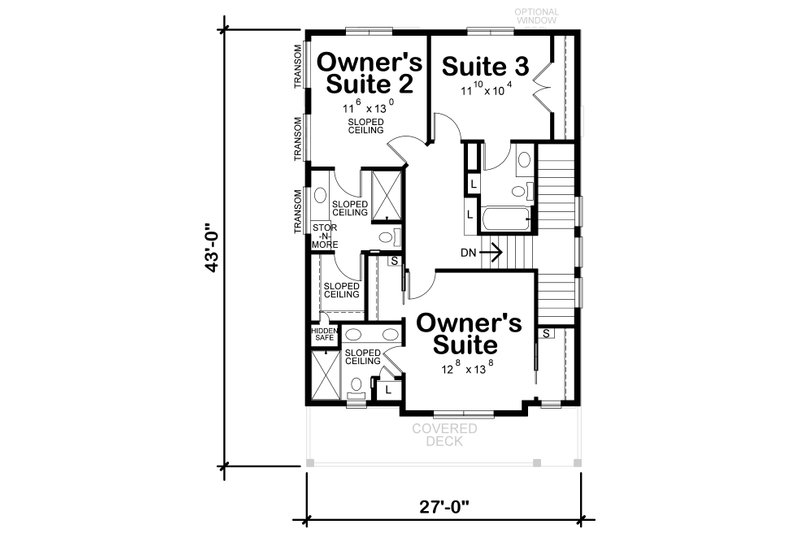

- Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
- Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
- Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
Questions? Call 1-800-528-8070
Plan Set
| PDF Set : $939.25 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| PDF Unlimited Build : $1364.25 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD and PDF Set : $1555.50 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Unlimited Build : $1980.50 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Study Set : $582.25 |
One electronic set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x4: $208.25 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse : $208.25 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design : $85.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $33.15 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
