Full Specs & Features
Depth : 64'
Height : 18' 11"
Width : 76'
Garage : 1040 sq/ft
Main Floor : 2030 sq/ft
Porch : 1096 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Garage Ceiling : 10' 3"
Main Ceiling : 9'
Roof Framing : Truss
Roof Load : 30 psf
Roof Type : Metal Roof
Exterior Wall Framing
Exterior Wall Finish : Vertical Metal Siding
Framing : 2x6
Insulation : R-19
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
» See important
information before purchasing.
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

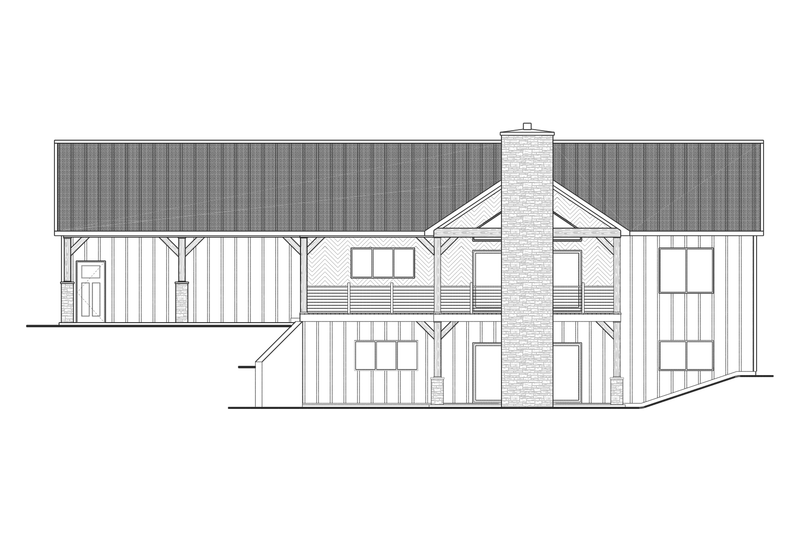

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

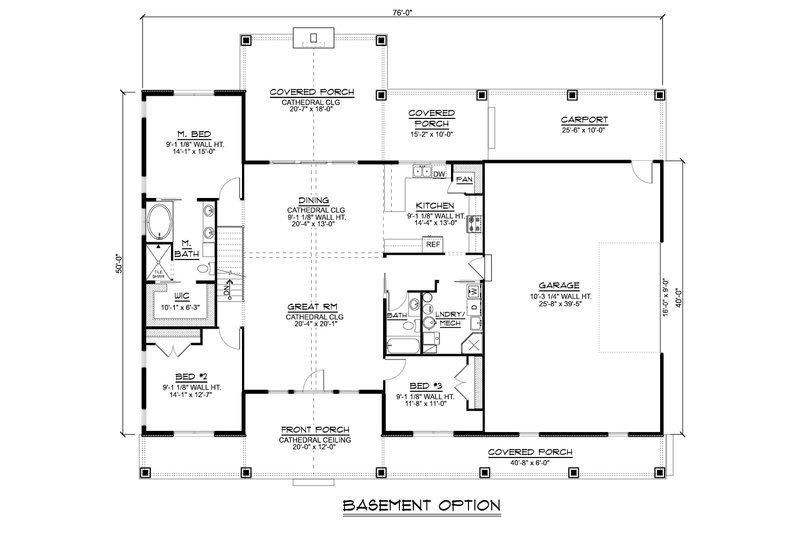

Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
