Plan Description

Compact efficiency aptly describes this classic Cape Cod plan. You will be thrilled to learn that each bedroom has it;s own private bath and that there is a first floor half bath for guests. Upstairs, a great bonus room awaits your creativity for use as extra living space, home office, or recreation room. You can even plan to grow into this home by leaving the upstairs unfinished for now and finishing the attic space as you needs change. Don't forget the huge storage attic over the garage for holiday decorations and other rarely used items.

Floor Plans

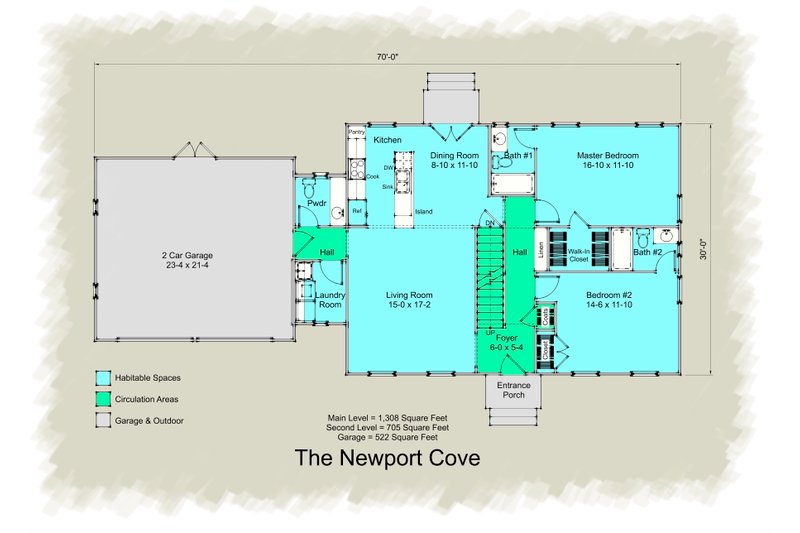

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

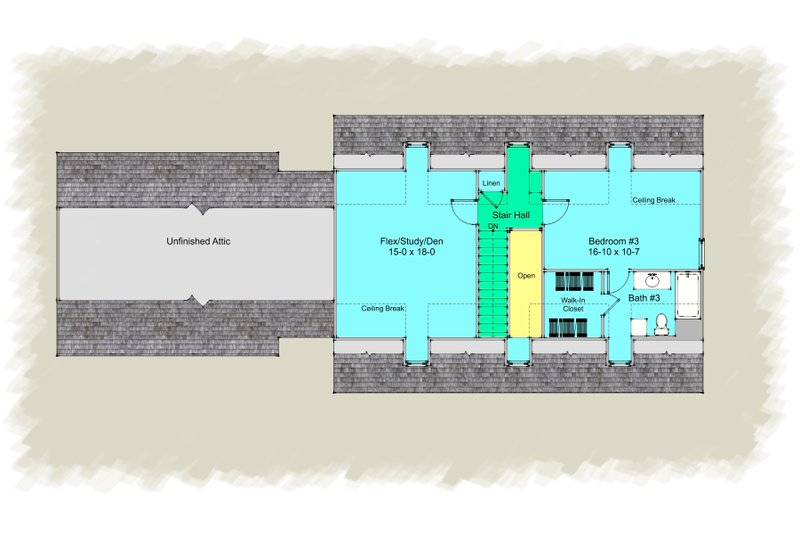

Floor Plan - Upper Floor

Reverse

House Plan Design - Colonial Floor Plan - Upper Floor Plan #489-8

Full Specs & Features

Dimension

Depth : 30'

Height : 24'

Width : 70'

Area

Bonus : 303 sq/ft

Garage : 522 sq/ft

Main Floor : 1308 sq/ft

Upper Floor : 705 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Suited for Traditional Crown Moldings

Garage Ceiling : 8' 4"

Main Ceiling : 8'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 10:12

Roof Framing : 2x8 Rafters @ 24 Inches On Center

Roof Type : Sticked Framed Gable

Exterior Wall Framing

Exterior Wall Finish : Wood Shingle or Fiber Board

Framing : 2x4 @ 16 Inches On Center

Insulation : As Required Locally

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Great Room Living Room

Main Floor Laundry

Play Flex Room

Unfinished Future Space

Garage Features

Front Entry Garage

Economical To Build

Empty Nester

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
