Full Specs & Features
Depth : 64' 6"
Height : 20' 8"
Width : 67' 9"
Basement : 1967 sq/ft
Decks : 247 sq/ft
Garage : 752 sq/ft
Main Floor : 1969 sq/ft
Porch : 157 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Bonus Ceiling : 9'
Main Ceiling : 9' 1"
Primary Pitch : 10/12
Roof Framing : Truss
Roof Load : 30 psf
Roof Type : Shingles
Secondary Pitch : 7/12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x4
Insulation : R-13
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Play Flex Room
Suited For Sloping Lot
Suited For View Lot
Covered Front Porch
Grill Deck Sundeck
Additional Half Bath
Economical To Build
What's Included In This Plan Set
» See important
information before purchasing.
All plans are drawn at ¼” scale or larger and include :

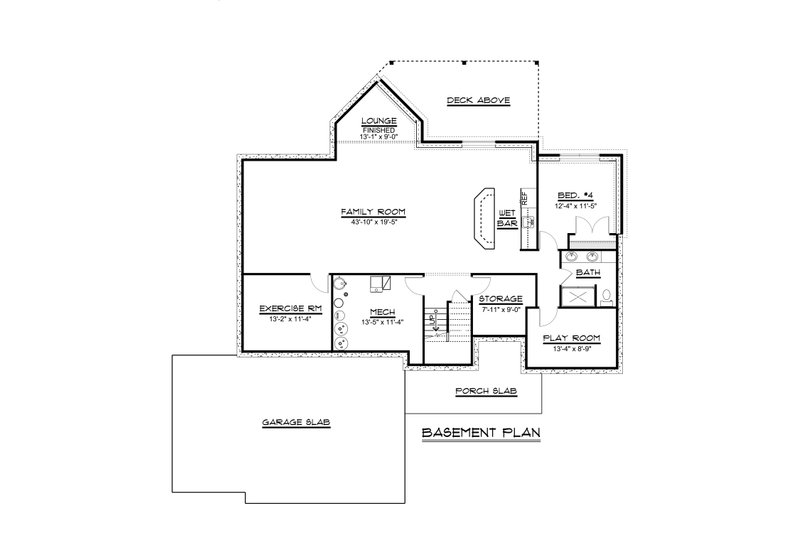

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

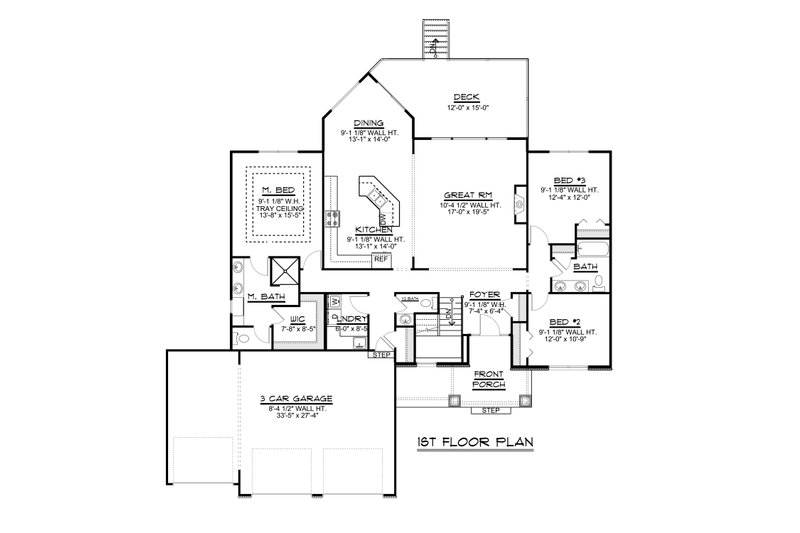

Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
