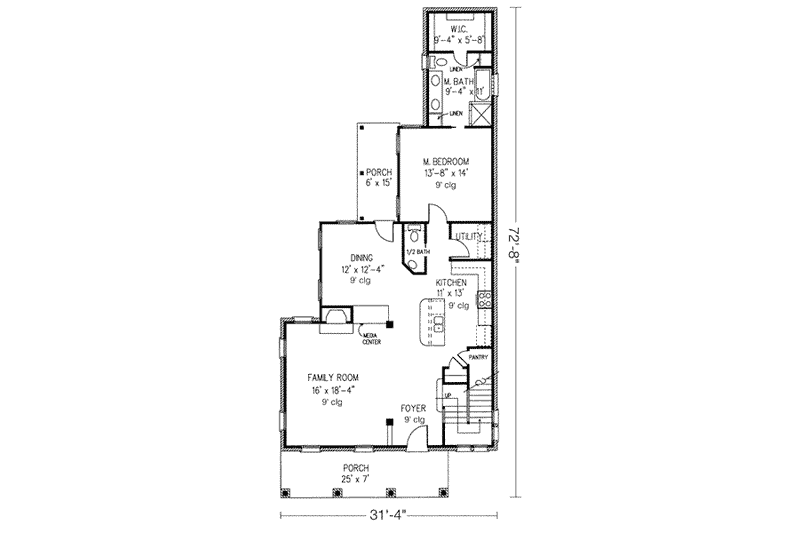

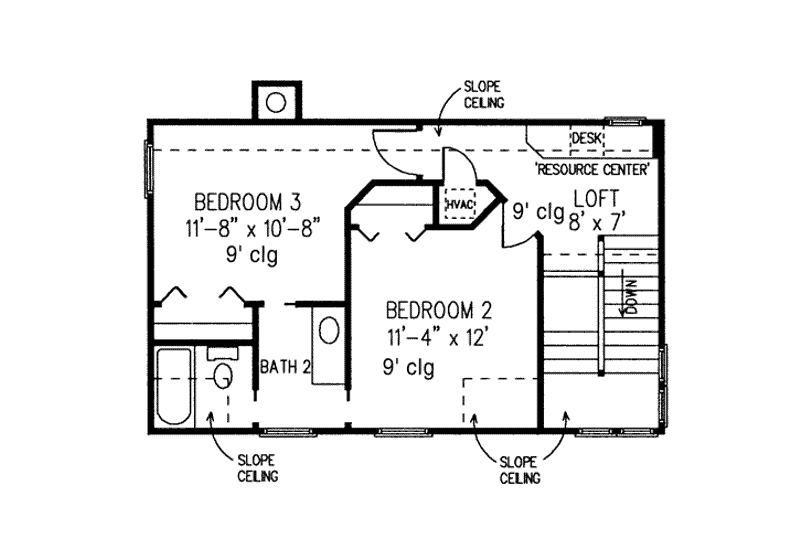

135 sq/ft width 11' 4" x depth 12'
124 sq/ft width 11' 8" x depth 10' 8"
147 sq/ft width 12' x depth 12' 4"
293 sq/ft width 16' x depth 18' 4"
463 sq/ft width 19' 4" x depth 24'
143 sq/ft width 11' x depth 13'
56 sq/ft width 8' x depth 7'
102 sq/ft width 9' 4" x depth 11'
191 sq/ft width 13' 8" x depth 14'
Master Walk-In Closet:
52 sq/ft width 9' 4" x depth 5' 8"
Porch - Front:
175 sq/ft width 25' x depth 7'
All plans are drawn at ¼” scale or larger and include :
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|One electronic set for bidding purposes only. Not a legal building set for construction.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
