PLAN 132-209

Photographs may show modified designs.

Save
  • Jump to:
  • All (8)
  • Floor plans (2)
Questions? Get Personalized Help

Key Specs


Plan Sq Ft

1884
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$300.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$50.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$1500.00
Best Price Guaranteed*

Also order by phone: 1-800-528-8070
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.


Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 132-209

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description


Looking for a bright, open home with a big kitchen? Take a look at this Craftsman design, which puts the master suite on the main floor where it's easy to reach, and enjoy your private five-piece bathroom. All three bedrooms feature walk-in closets. Step out from the great room to the back patio for summer entertaining.

Floor Plans

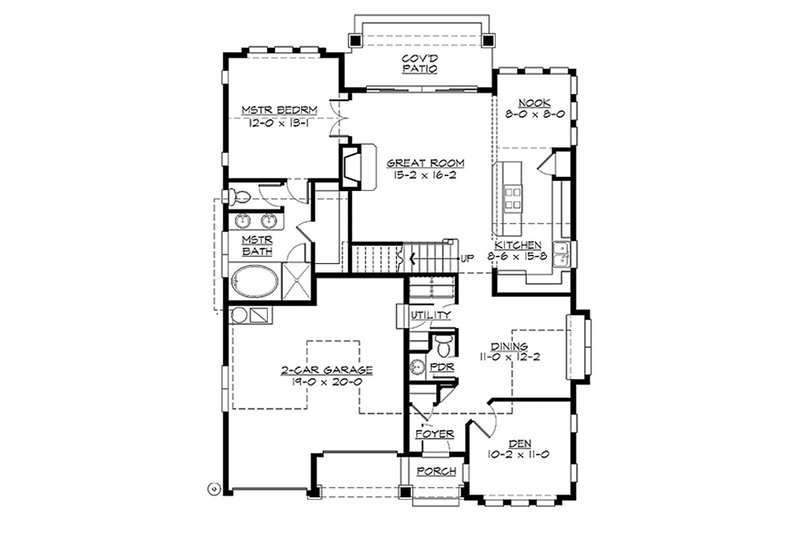

Floor Plan - Main Floor

Reverse
Save

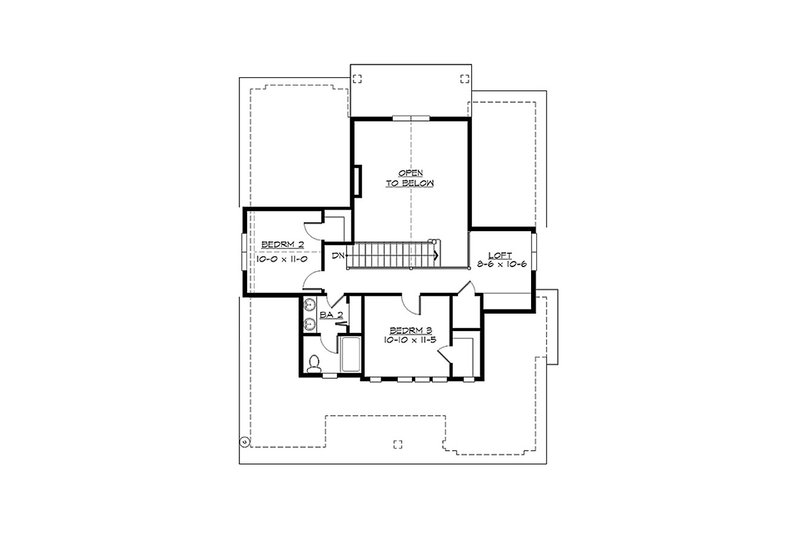

Floor Plan - Upper Floor

Reverse
Save

Full Specs & Features


Dimension

Depth : 51'

Height : 24'

Width : 38'

Area

First Floor: 1279 sq/ft height 9'

Garage: 410 sq/ft

Second Floor: 605 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 9:12

Roof Framing : Trusses

Roof Load : 25

Roof Type : Comp

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : 2"x6"

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing

Structural 1st Floor Framing

Structural 2nd Floor Framing

Structural Roof Framing

Rooms

Bedroom 2:

110 sq/ft width 10' x depth 11'

Bedroom 3:

124 sq/ft width 10' 10" x depth 11' 5"

Covered Front Porch:

26 sq/ft

Covered Rear Patio:

94 sq/ft

Den:

112 sq/ft width 10' 2" x depth 11'

Dining Room:

134 sq/ft width 11' x depth 12' 2"

Garage:

410 sq/ft width 19' x depth 20'

Great Room:

245 sq/ft width 15' 2" x depth 16' 2"

Kitchen:

133 sq/ft width 8' 6" x depth 15' 8"

Loft:

89 sq/ft width 8' 6" x depth 10' 6"

Master Bedroom:

160 sq/ft width 12' x depth 13' 1"

Nook:

64 sq/ft width 8' x depth 8'

What's Included


Purchasing a CAD set gives you a multi-build license.

If you are building this plan in the state of Washington, please call us before placing your order.
  • This designer includes the bonus square feet in the total heated living square feet.
    • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
    • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
    • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
    • Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
    • Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
    • Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

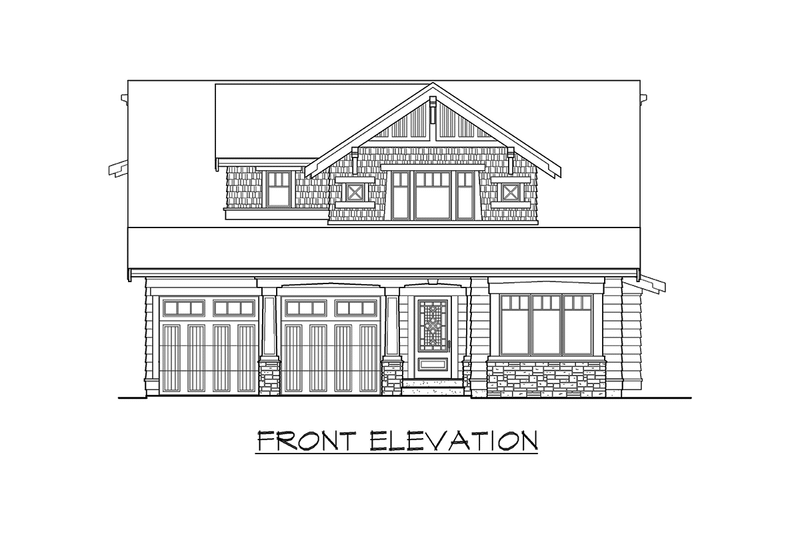

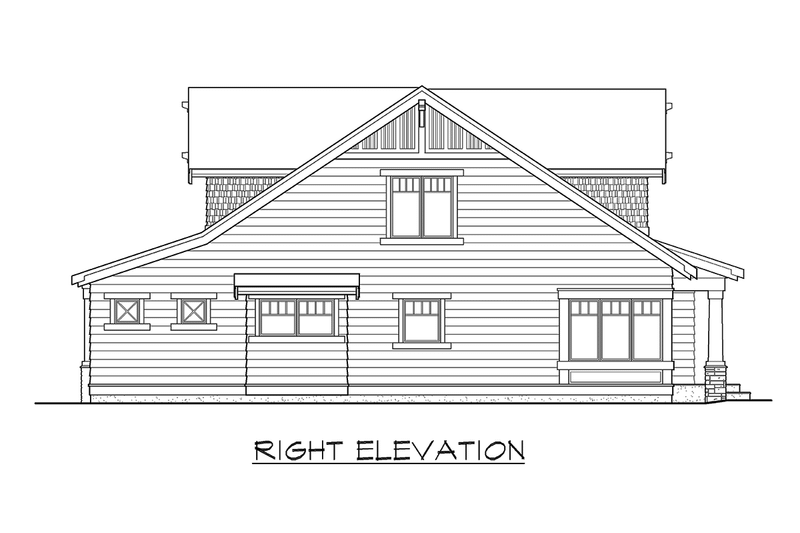

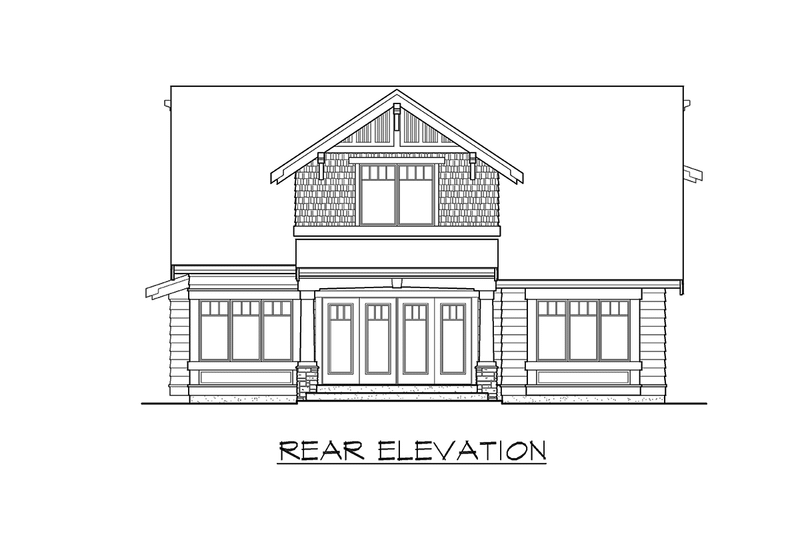

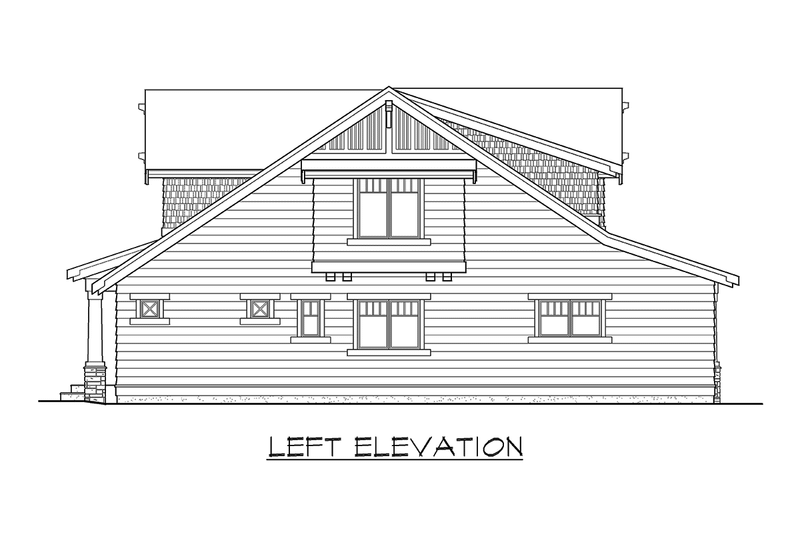

    • Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
    • Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
» See important information before purchasing.
Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$1500.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$2800.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Right-Reading Reverse:
$300.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
