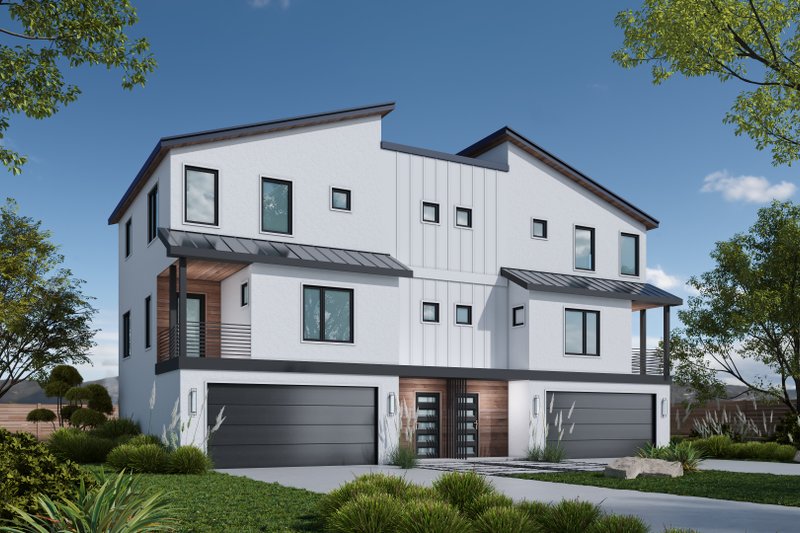

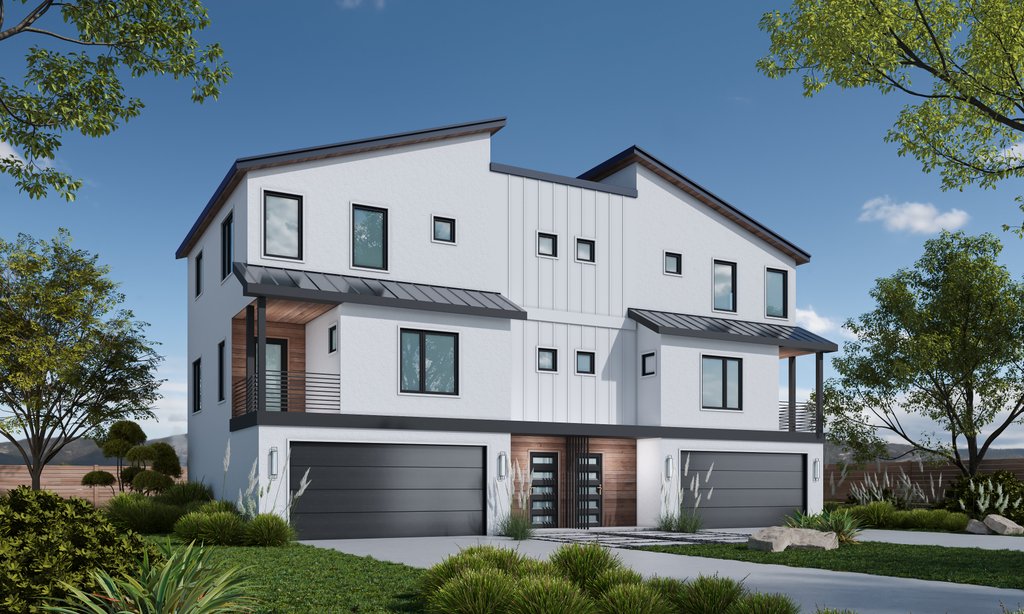

PLAN 20-2620
Photographs may show modified designs.
- Jump to:
- All (8)
- Floor plans (3)
Get Personalized Help
Key Specs
1781
sq ft
3
Beds
3.5
Baths
2
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTB2026
Use Code CTB2026
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 20-2620
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

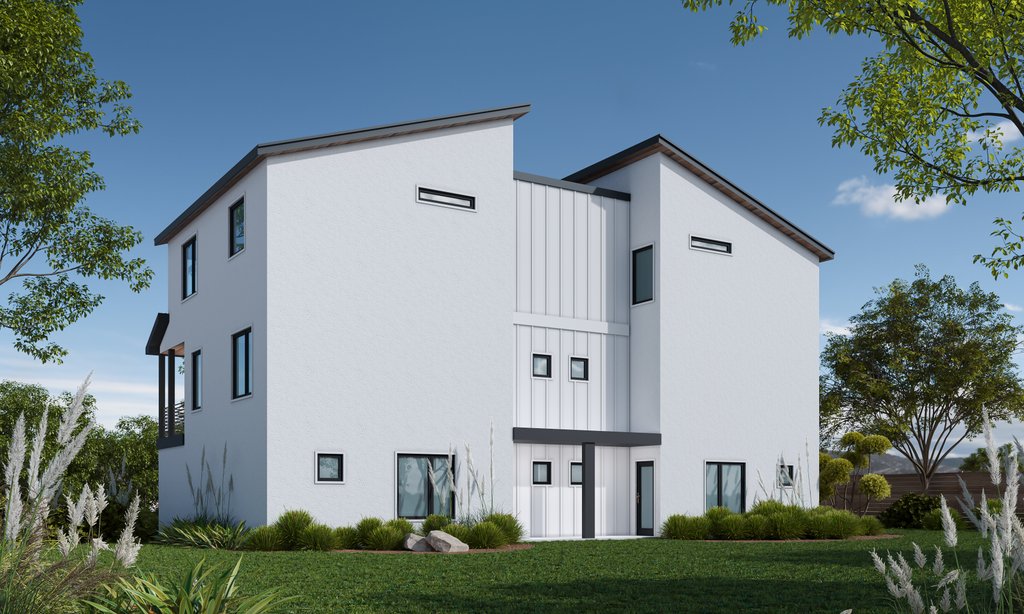

Plan Description
Units A and B: 1781 SF and 28' wide. This duplex home features a modern, urban-inspired design with clean lines, vertical emphasis, and a compact footprint that makes it ideal for narrow or infill lots. The three-level layout maximizes space with an open main living area, a private lower-level bedroom, an upper-level sleeping zone, and convenient features like a covered deck, attached garage, and centrally located laundry.
Floor Plans

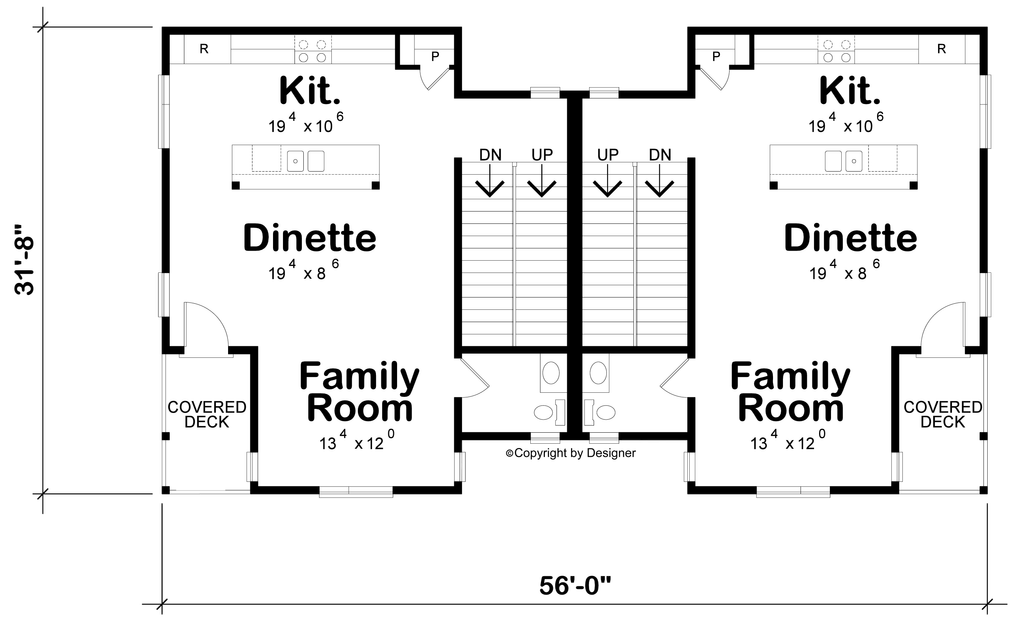

Floor Plan - Main Floor

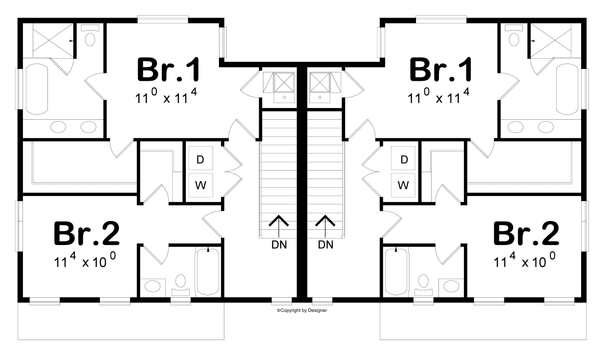

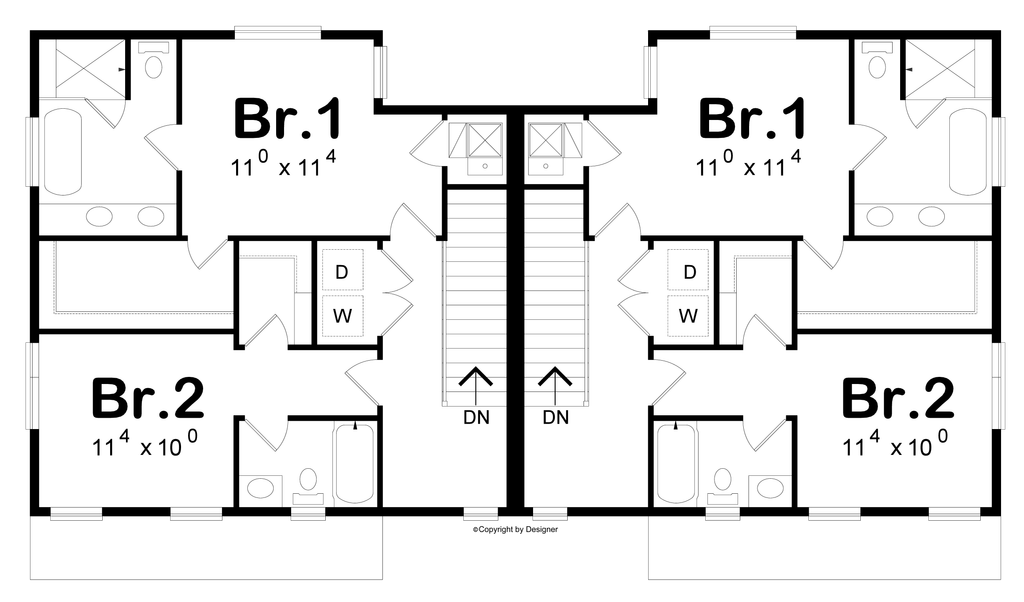

Floor Plan - Upper Floor

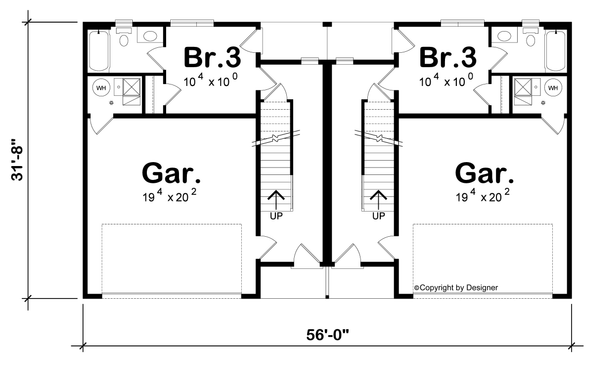

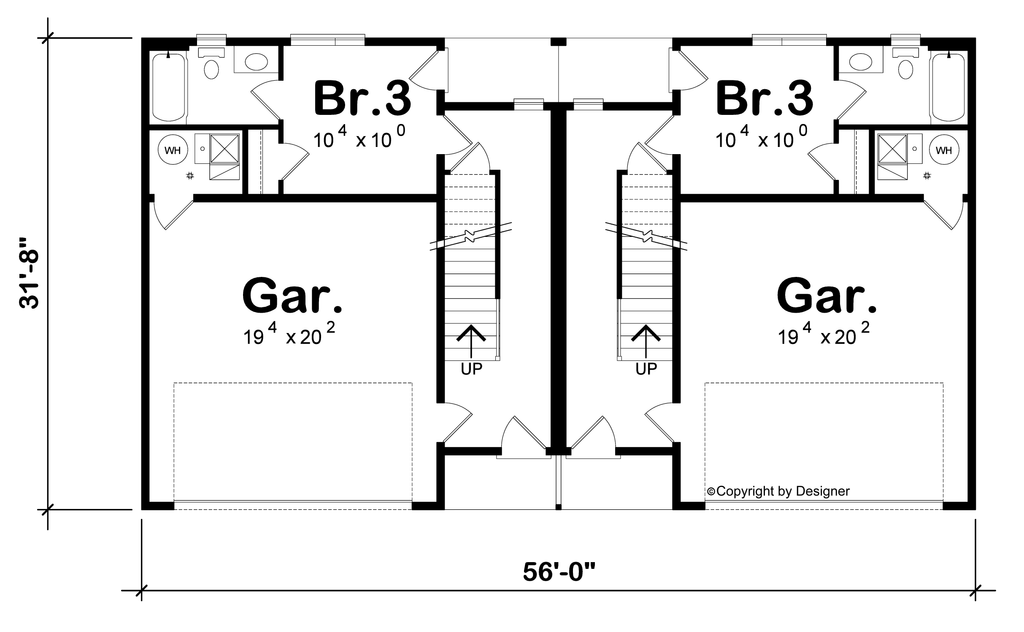

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth: 31' 8"
Height: 35' 1"
Width: 56'
Area
Garage: 890 sq/ft
Lower Floor: 658 sq/ft
Main Floor: 1536 sq/ft
Upper Floor: 1368 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling: 8'
Main Ceiling: 9'
Upper Ceiling Ft: 8'
Roof
Primary Pitch: 4/12
Roof Framing: Trusses per Manufacturer
Roof Load: 30 Live, 10 Dead
Roof Type: Shingle
Exterior Wall Framing
Exterior Wall Finish: Board & Batten / Siding
Framing: 2x6
Insulation: Batt R21
Bedroom Features
Main Floor Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Family Room Keeping Room
Upstairs Laundry
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Front elevation and informative reference sections including: general notes and design criteria
- Foundation Plan(s): Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Basement foundations show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
- Floor Plan(s): 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.

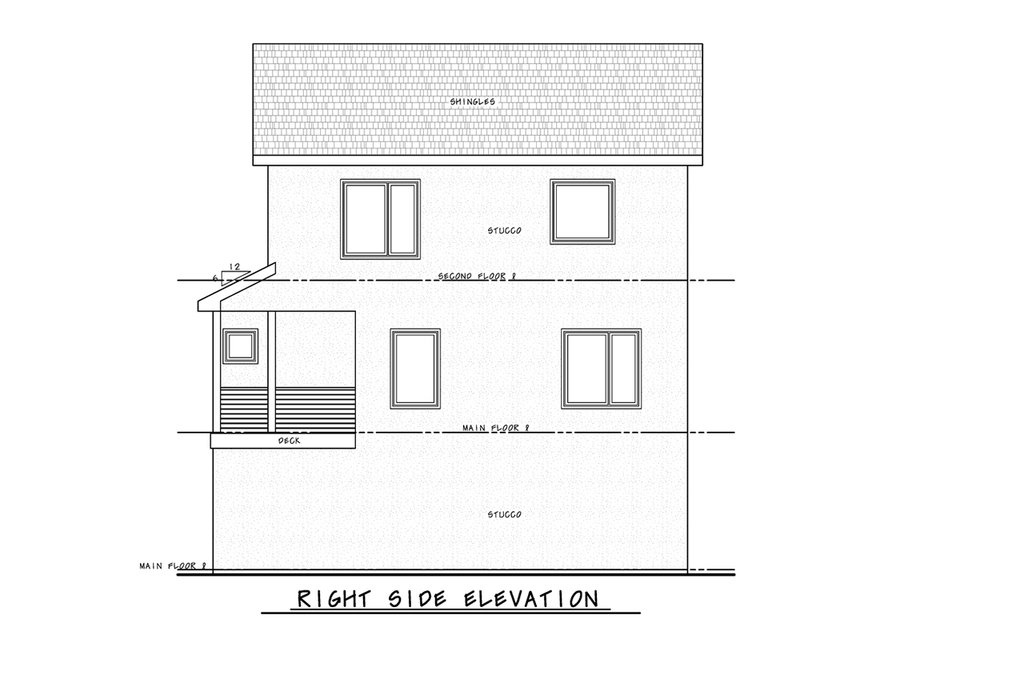

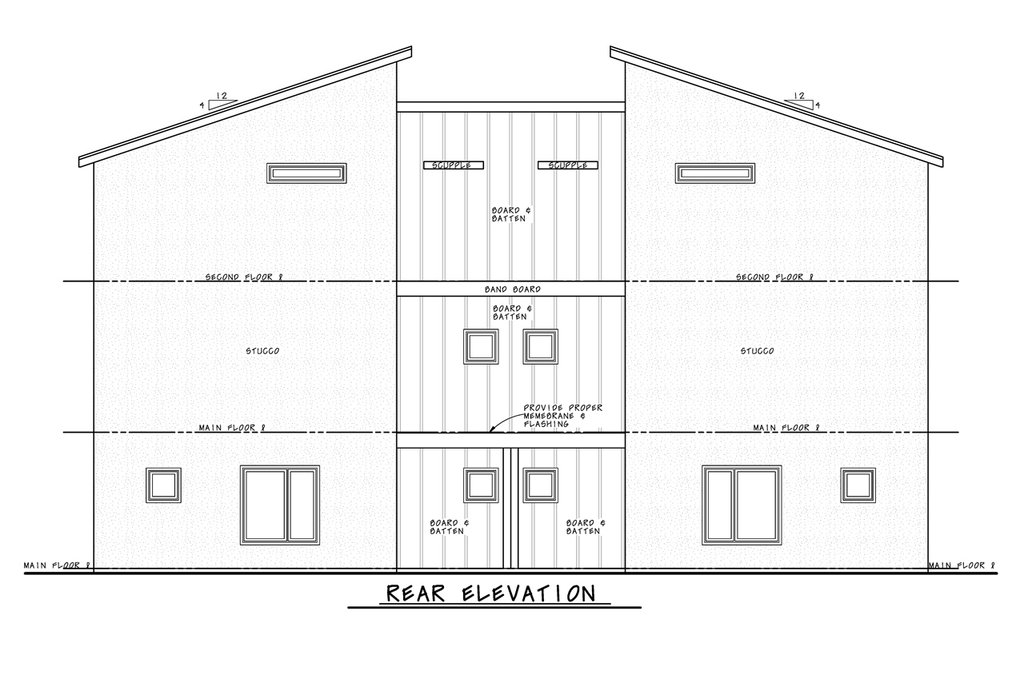

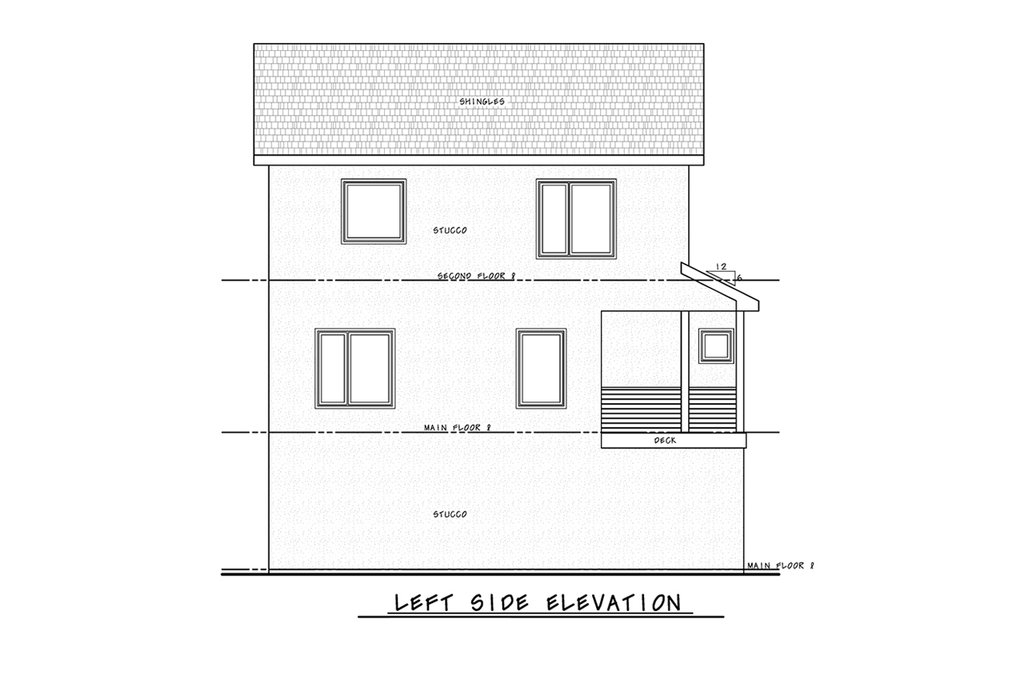

- Exterior Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
- Kitchen Cabinet Elevation(s): Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations. Not included with all plans, please call for details.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$2080.00
$2080.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
PDF Unlimited Build:
$2679.00
$2679.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$3145.00
$3145.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$3744.00
$3744.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Walk Out Basement:
$0.00
$0.00
Ideal for a sloping lot, lower level with outdoor access.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Wood 2x4:
$345.00
$345.00
Wood 2x4 Exterior Walls
Additional Options
Right-Reading Reverse:
$345.00
$345.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Use License:
$300.00
$300.00
Allows you to build one more home for each additional license purchased.
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$295.00
$295.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Unlimited Use License:
$599.00
$599.00
Allows you to build this home as many times as you want.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
