PLAN 70-1507
Photographs may show modified designs.
- Jump to:
- All (5)
- Floor plans (2)
Get Personalized Help
Key Specs
1740
sq ft
3
Beds
2.5
Baths
1
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTB2026
Use Code CTB2026
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 70-1507
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Simple to build, but loaded with features and craftsman charm, this ranch will be a popular house plan design for any neighborhood. The kitchen boasts a walk-in pantry and a breakfast bar that overlooks the great room. The main suite is located behind the garage with direct access to the laundry. Two additional bedrooms, a full bath and a large family room are located in the finished basement and accessed by stairs at the back of the home.
Floor Plans

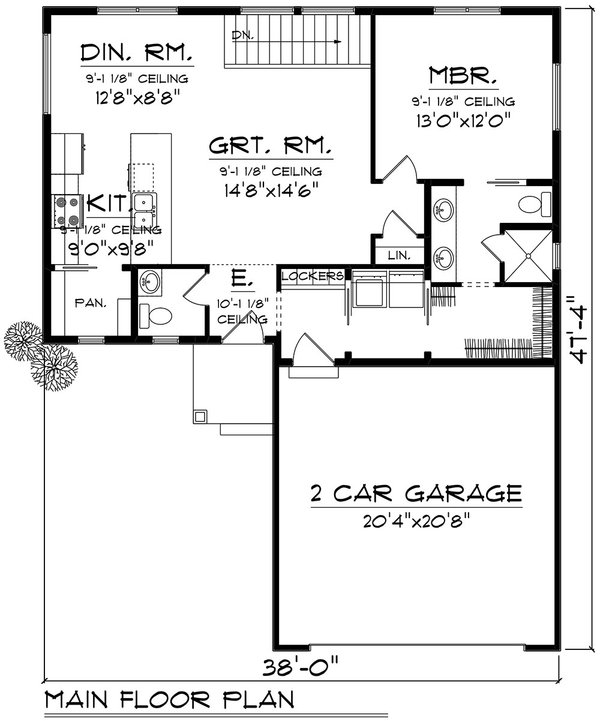

Floor Plan - Main Floor

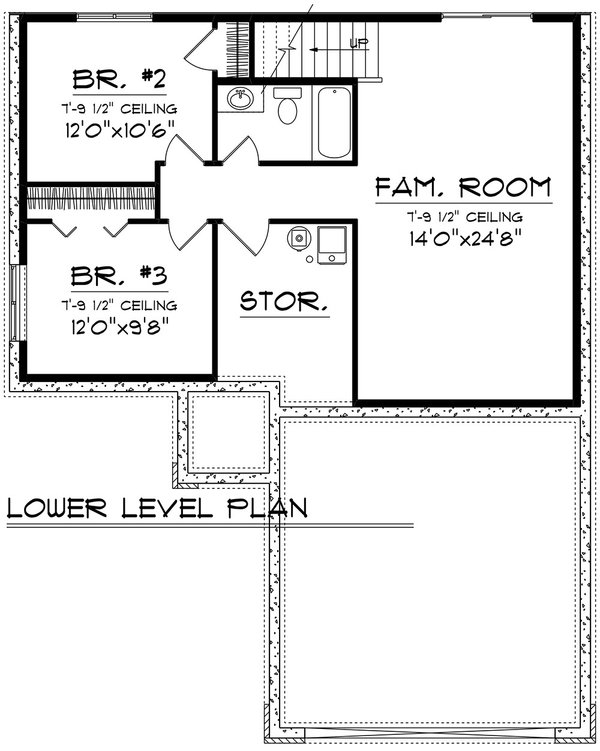

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 47' 4"
Height : 18' 4"
Width : 38'
Area
Garage : 440 sq/ft
Lower Floor : 768 sq/ft
Main Floor : 972 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 7' 9"
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Stone, Shake, Horizontal
Framing : 2x6
Bedroom Features
Lower Level Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Garage Features
Front Entry Garage
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Cover sheet with front rendering
- Foundation Plan(s): Foundation plans at 1/4" = 1' scale
- Floor Plan(s): Floor plans at 1/4" = 1' scale
- Exterior Elevations: Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Building sections and details as required to construct the individual design
- Electrical Plan(s): Schematic electrical plans with suggested switch, outlet, and light fixture locations
- Kitchen Cabinet Elevation(s): Interior elevation of cabinets at 1/4" = 1' scale
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Specification(s): General specification design notes
Questions? Call 1-800-528-8070
Plan Set
5 Copy Set:
$1022.00
$1022.00
5 printed plan sets mailed to you.
8 Copy Set:
$1067.00
$1067.00
8 printed plan sets mailed to you.
PDF Set:
$1276.00
$1276.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$1276.00
$1276.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set:
$2017.00
$2017.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Walk Out Basement:
$0.00
$0.00
Ideal for a sloping lot, lower level with outdoor access.
Crawlspace:
$415.00
$415.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$415.00
$415.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
