PLAN 1114-9
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
This cabin design floor plan is 1662 sq ft and has 2 bedrooms and 2 bathrooms.
Floor Plans

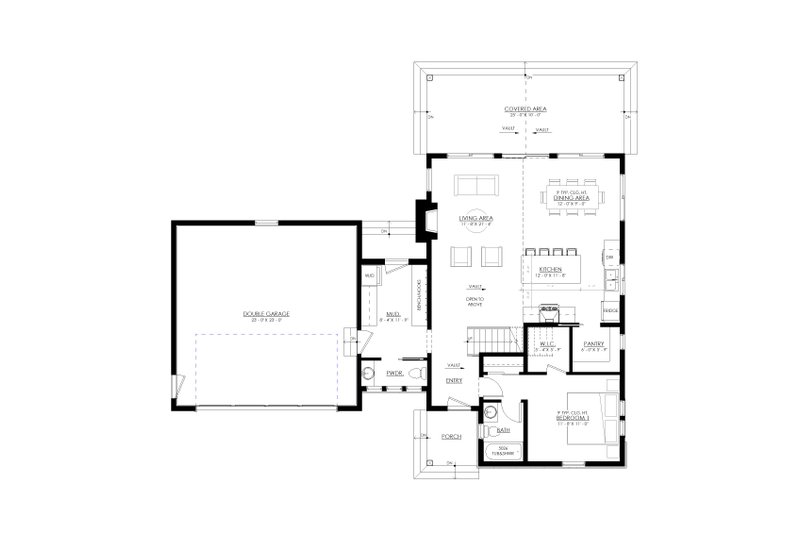

Floor Plan - Main Floor

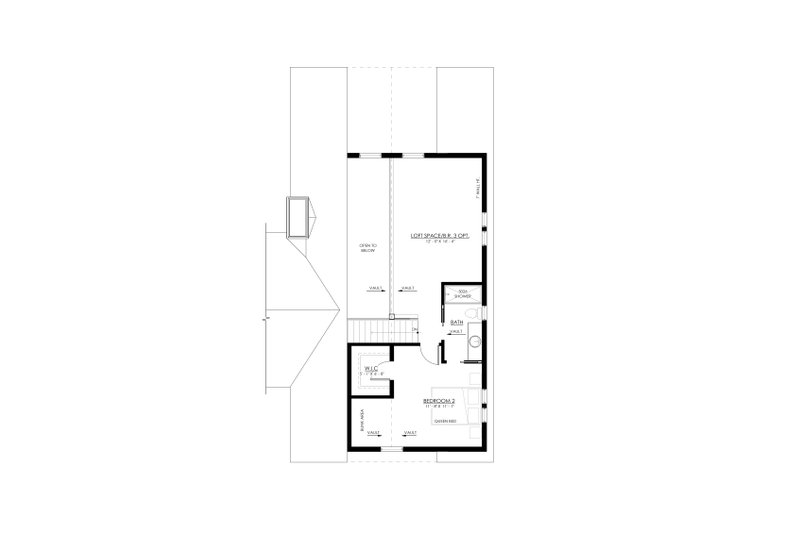

Floor Plan - Upper Floor

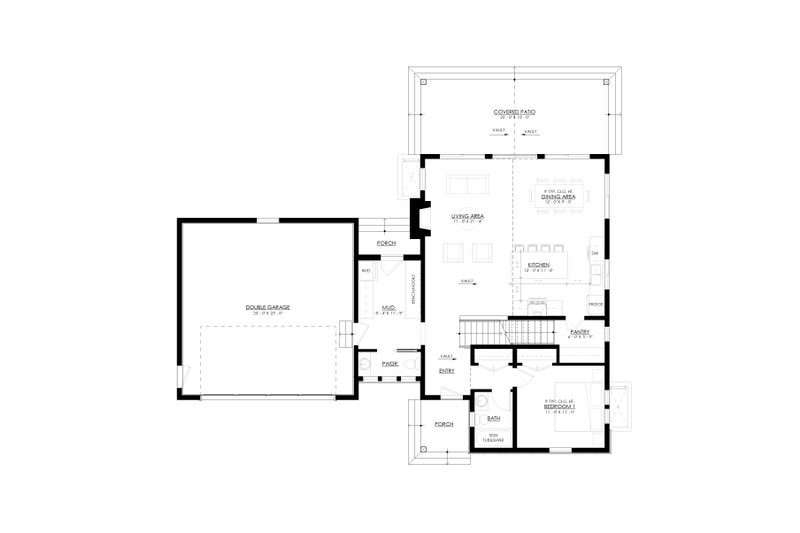

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 49' 6"
Height : 26' 4"
Width : 57' 4"
Area
Decks : 250 sq/ft
Garage : 567 sq/ft
Main Floor : 1088 sq/ft
Porch : 46 sq/ft
Upper Floor : 574 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Upper floor starts vaulting at 7'
Main Ceiling : 9'
Upper Ceiling Ft : 7'
Roof
Primary Pitch : 14/12
Roof Framing : Hand Frame
Roof Load : n/a
Roof Type : Standing seam metal
Secondary Pitch : 5/12
Exterior Wall Framing
Exterior Wall Finish : Horizontal Siding & Manufactured Stone
Framing : 2x6
Insulation : Batt Insulation
What's Included In This Plan Set
- Foundation Plan: Footing sizes, slab thickness, floor framing sizes/layout, etc.
- Floor Plan(s): Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
- Roof Plan: Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
- Exterior Elevations: Views of the front, rear, and sides of the home detailing exterior finish work.
- Building Sections: Vertical slices of the home showing ceiling heights, floor level changes, and roof profiles.
- Construction Details: Detailed drawings of foundation/footings, floor framing, door and window framing, roof framing, roof venting, etc.
What is NOT INCLUDED in the plans:
- Architectural or Engineering Stamp: If required, stamps and seals must be obtained through a local architect or engineer. PDF and CAD plan licenses allow you to work with independent sources for compliance. Check with your builder to ensure they can work with you.
- Site Plan: Site plans are handled locally, if required. Someone needs to walk the property and take measurements.
- Plumbing Plans: Your contractor or utility subcontractor will prepare details for water and waste systems according to your property and local codes.
- Electrical Plans: Not included but can be prepared by request for an additional fee.
- Mechanical Drawings: Location of heating and air equipment and ductwork is to be provided by the builder, subcontractor, or engineer.
- Framing Layouts: Beam sizes and locations are not calculated since requirements vary by region.
- Material Lists: Can be purchased as an add-on. Please allow 5–7 business days for delivery.
- Renderings, Photography, or Marketing Imagery: All images are copyrighted by the plan designer and used on the website with permission.
- Energy Calculations: Title 24, ResCheck, and other energy code calculations are handled locally if required.
- Building Codes: Because of varying local requirements, the plans may not include all information needed by your building department. If needed, we recommend hiring a local design professional or engineer to bring the plans into compliance.
- Engineering: Some states require a licensed architect or engineer to review and stamp the plans. If this applies where you’re building, a local professional will assist with your permit plans.
Please call or send us a message to verify what is / is not included with this set of plans.
