PLAN 60-332
Photographs may show modified designs.
- Jump to:
- All (2)
- Floor plans (1)
Get Personalized Help
Key Specs
1642
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 60-332
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Floor Plans

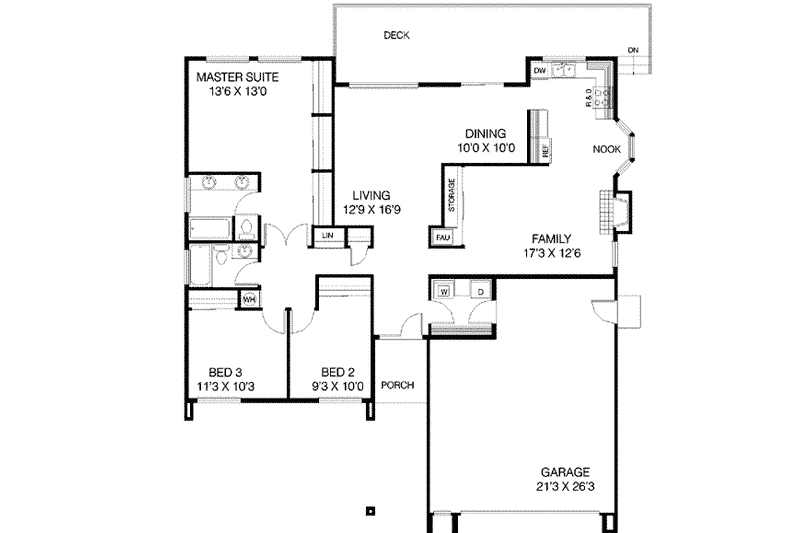

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 52'
Height : 19'
Width : 55'
Area
First Floor: 1642 sq/ft
Roof
Primary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Workshop
Lot Characteristics
Suited For View Lot
Rooms
Bedroom 2:
92 sq/ft width 9' 3" x depth 10'
Bedroom 3:
115 sq/ft width 11' 3" x depth 10' 3"
Dining Room:
100 sq/ft width 10' x depth 10'
Family Room:
215 sq/ft width 17' 3" x depth 12' 6"
Garage:
557 sq/ft width 21' 3" x depth 26' 3"
Living Room:
213 sq/ft width 12' 9" x depth 16' 9"
Master Suite:
175 sq/ft width 13' 6" x depth 13'
What's Included In This Plan Set
- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
Plan Set
$765.00
$807.50
$1445.00
Foundation
$0.00
Additional Options
$42.50
$85.00
$33.15
$85.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
