Full Specs & Features
Height : 22' 9"
Width : 51'
SubBasement Unfinished: 544 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Walk In Closet
Main Floor Laundry
Open Floor Plan
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
110 sq/ft width 10' x depth 11'
110 sq/ft width 10' x depth 11'
306 sq/ft width 17' x depth 18'
434 sq/ft width 21' x depth 20' 8"
143 sq/ft width 13' x depth 11'
135 sq/ft width 12' 4" x depth 11'
195 sq/ft width 15' x depth 13'
53 sq/ft width 9' 8" x depth 5' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

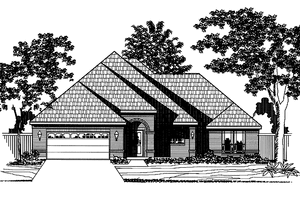

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
|5 Copy Set :
|5 printed plan sets mailed to you.|
|8 Copy Set :
|8 printed plan sets mailed to you.|
|PDF Set :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|Reproducible Set :
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|Single Set :
|One printed set for bidding purposes only. Not a legal building set for construction.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Right-Reading Reverse :
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets :
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design :
|Receive an overlay sheet with suggested placement of audio and video components.|
|Construction Guide :
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Lighting Design :
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets :
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
