Key Specs


1575
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Plan Description


From the front exterior, this two-story home appears as if two buildings were artfully melded together--with gabled rooflines on one side and twin dormers on the other. Inside, the floor plan is well-organized for efficient, but comfortable, family living. The family room, entered from the front covered porch and with a cozy hearth, will be the focus of many informal get-togethers. It opens into the island kitchen with an ample pantry. The adjoining breakfast nook features a handy built-in desk and access to the laundry room and half-bath. Upstairs, the lavish master suite and two family bedrooms share a hallway with a built-in desk, convenient for a word processor. The master bedroom has a private bath; the other two rooms share a bath. A huge unfinished area above the two-car garage could be used for storage.

Floor Plans

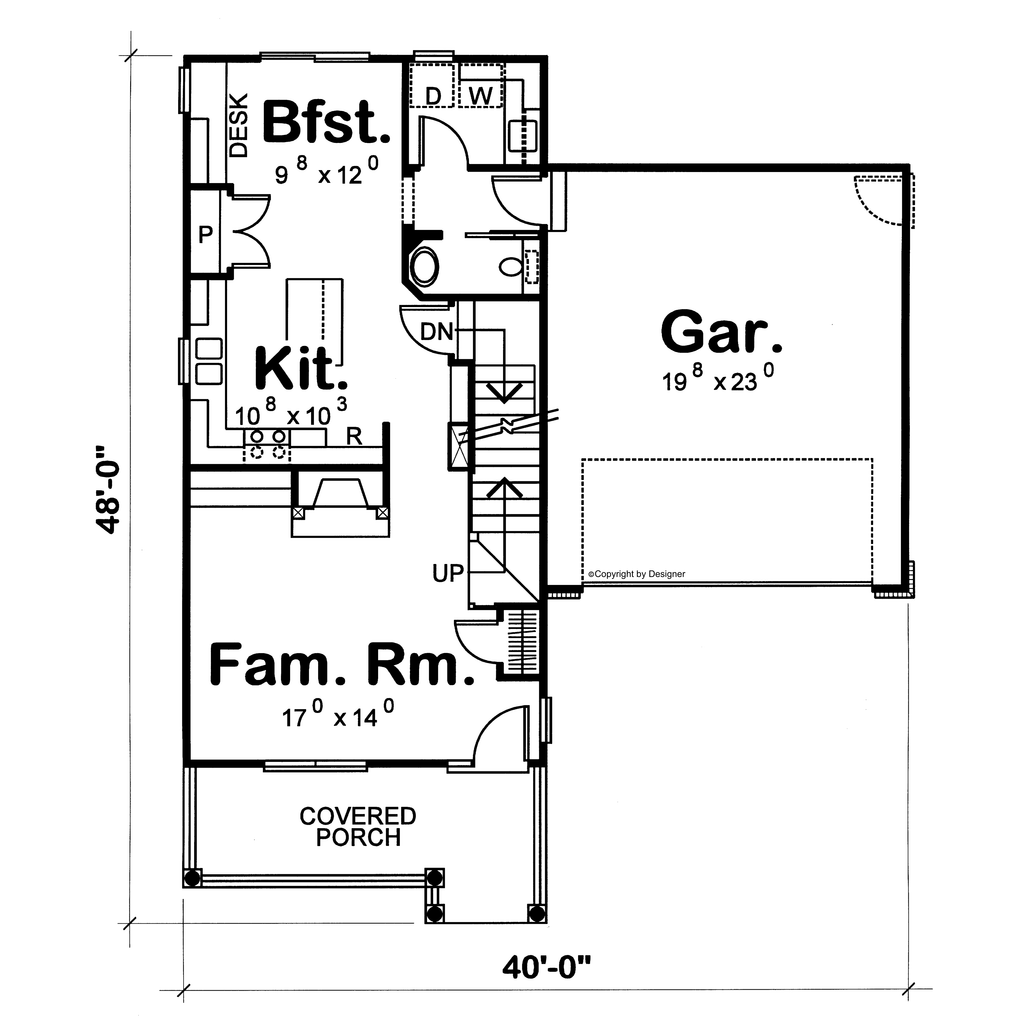

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #20-2227

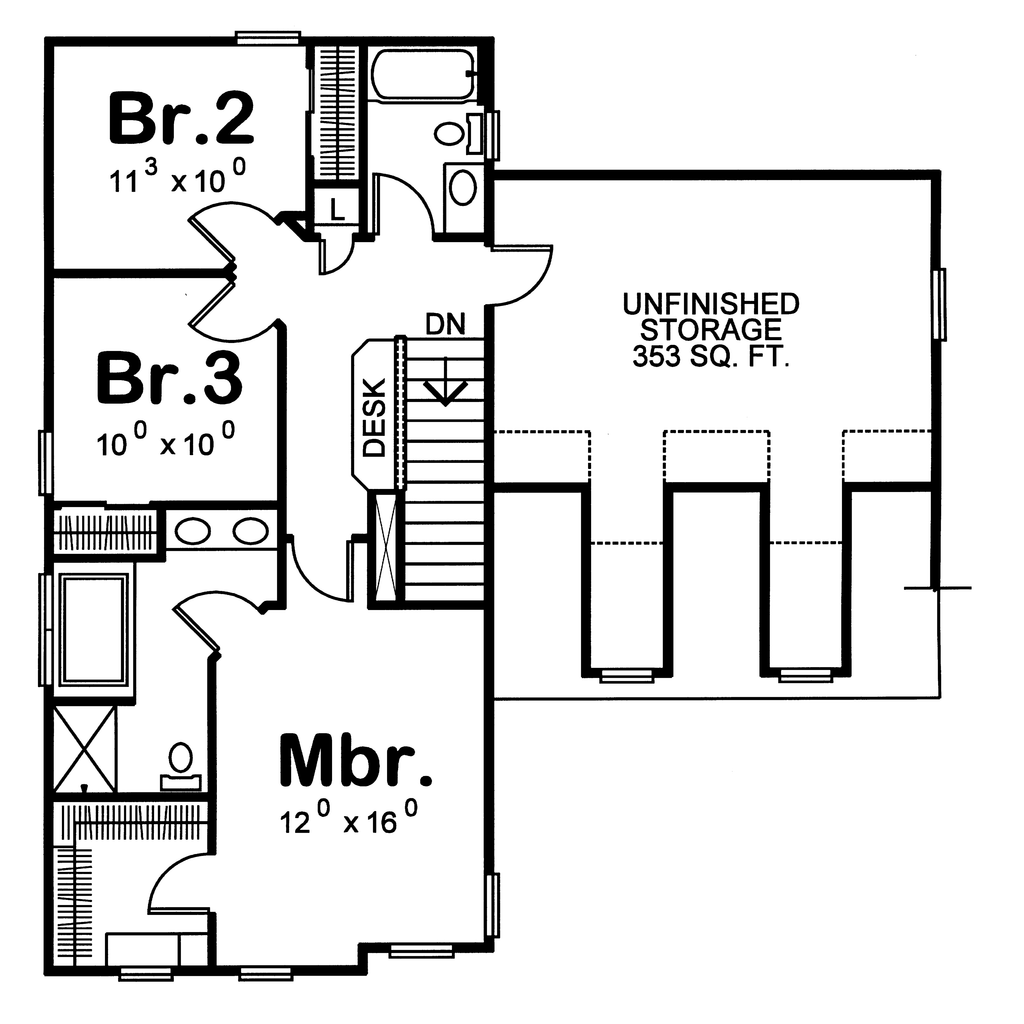

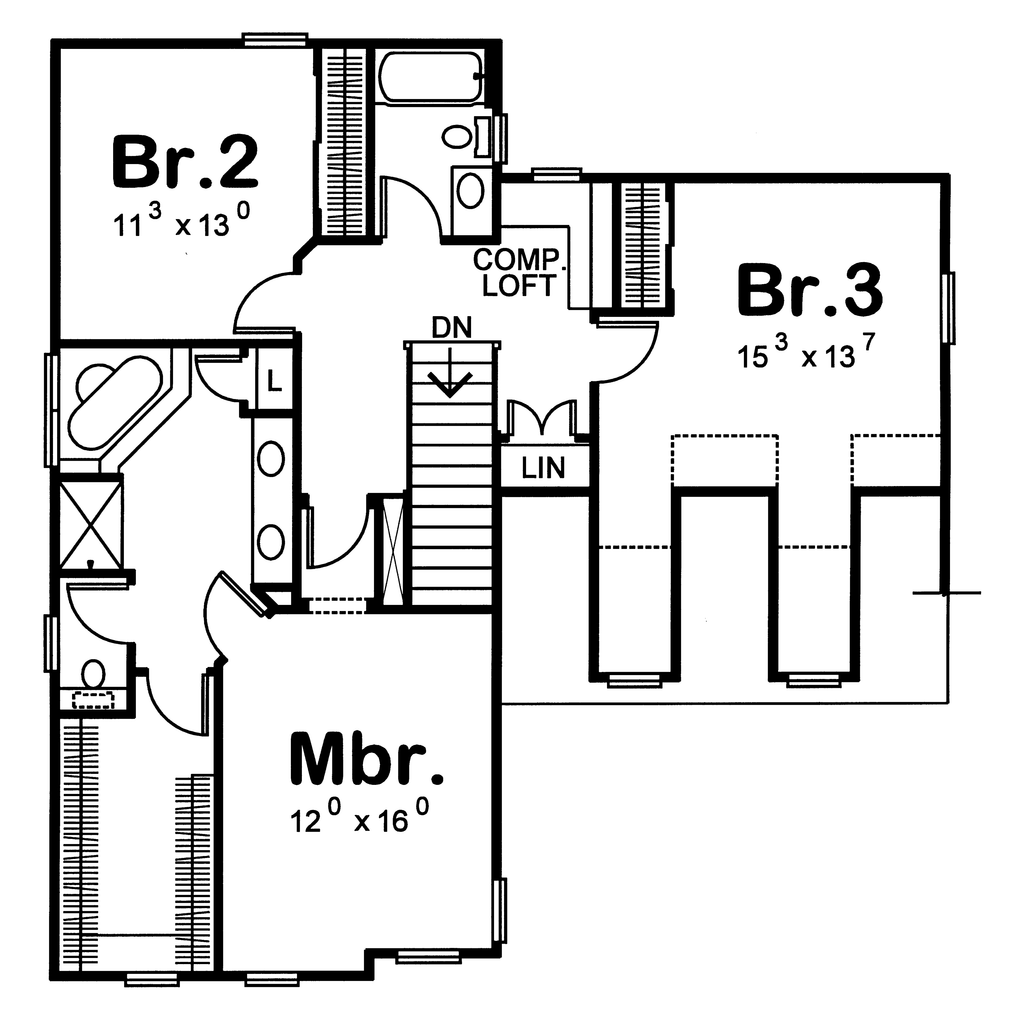

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #20-2227

Full Specs & Features


Dimension
Depth : 48'
Width : 40'
Area
First Floor: 787 sq/ft height 9'
Second Floor: 788 sq/ft height 8'
Storage: 353 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 9:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms

Bedroom 2:

112 sq/ft width 11' 3" x depth 10'

Bedroom 3:

100 sq/ft width 10' x depth 10'

Breakfast:

116 sq/ft width 9' 8" x depth 12'

Family Room:

238 sq/ft width 17' x depth 14'

Garage:

452 sq/ft width 19' 8" x depth 23'

Kitchen:

109 sq/ft width 10' 8" x depth 10' 3"

Kitchen Island:

14 sq/ft width 3' x depth 4' 10"

Laundry Room:

41 sq/ft width 7' 4" x depth 5' 8"

Master Bathroom:

128 sq/ft width 10' 1" x depth 12' 9"

Master Bedroom:

192 sq/ft width 12' x depth 16'

Master Closet:

51 sq/ft width 6' 11" x depth 7' 6"

What's Included In This Plan Set


  • Cover Page: Front elevation and informative reference sections including: general notes and design criteria
  • Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
  • Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
  • Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2x4 walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
  • Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
