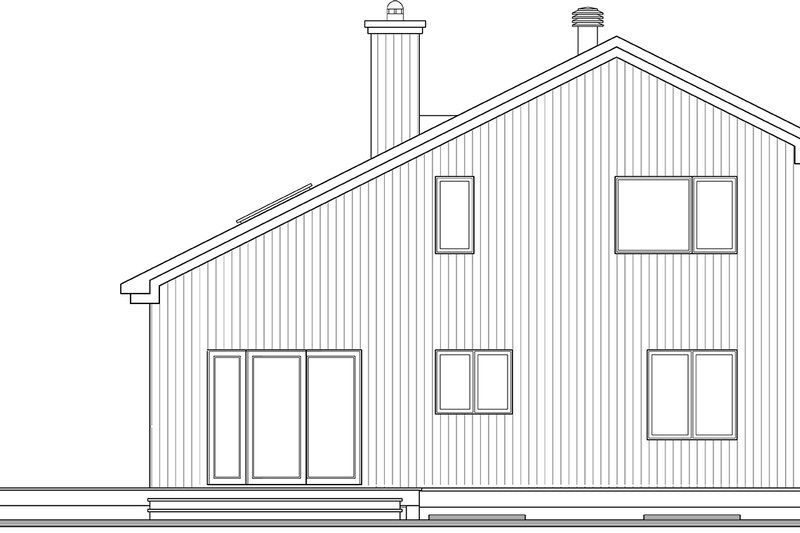

House Plan Design - Contemporary Exterior - Rear Elevation Plan #23-2037

Home / Style / Contemporary

Key Specs

1544
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$120.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$40.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$80.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $952.00

You save $238.00 (20% savings)

Sale ends soon!

Also order by phone: 1-800-528-8070

Wow! Cost to Build Reports Only $3.99 with Code NOVCTB (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 23-2037

Home / Style / Contemporary

Key Specs

1544
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Floor Plans

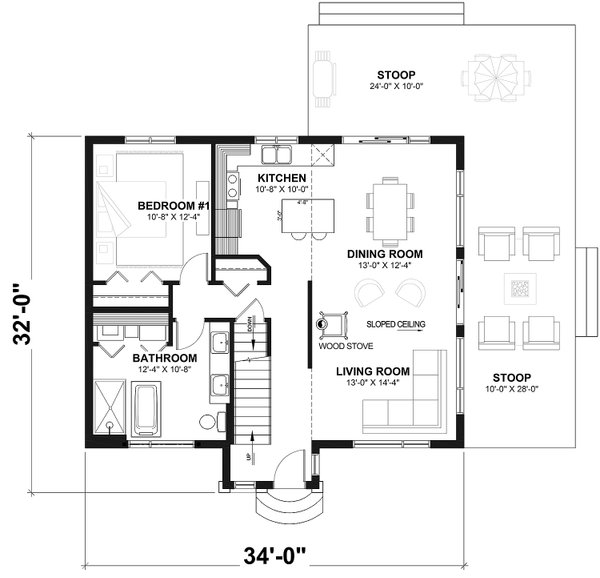

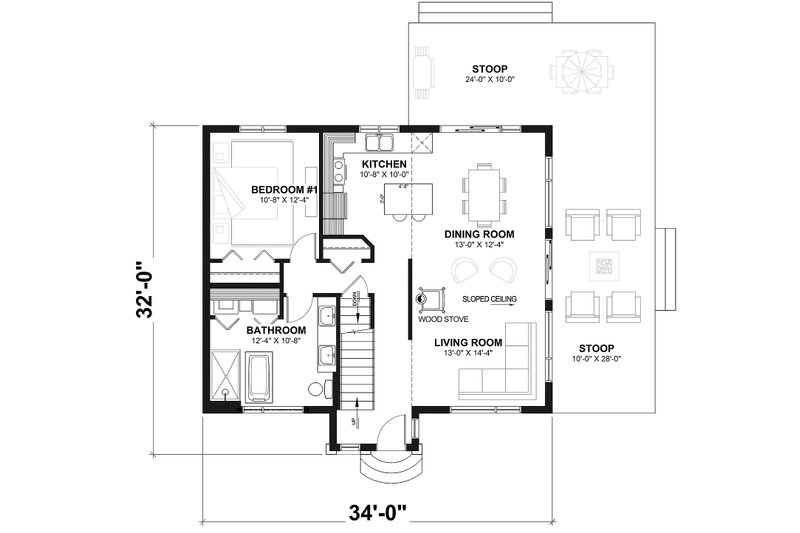

Floor Plan - Main Floor

Reverse

House Plan Design - Contemporary Floor Plan - Main Floor Plan #23-2037

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

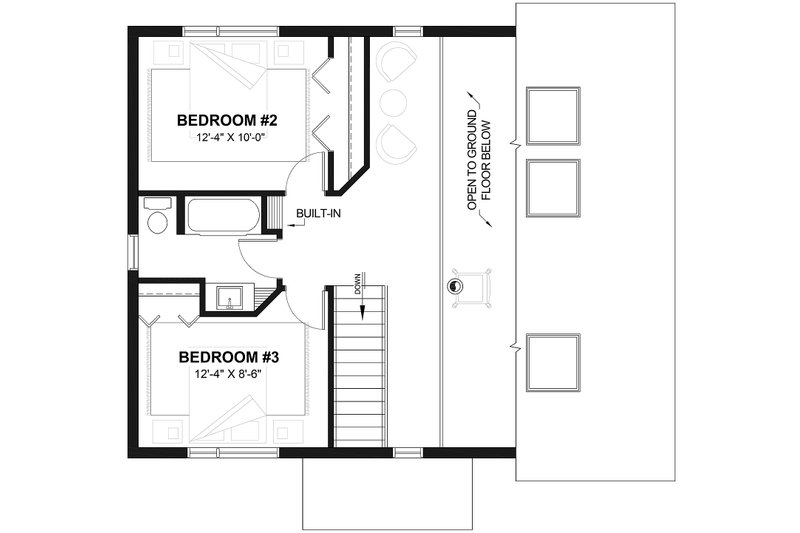

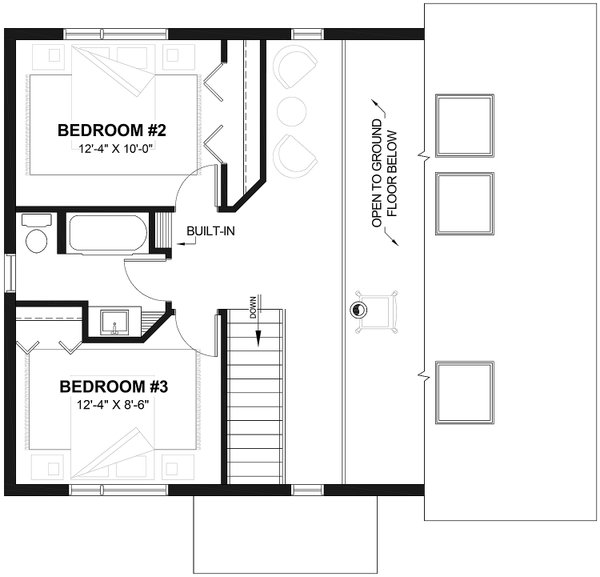

Floor Plan - Upper Floor

Reverse

House Plan Design - Contemporary Floor Plan - Upper Floor Plan #23-2037

Full Specs & Features

Dimension

Depth : 28'

Height : 24' 4"

Width : 34'

Area

First Floor: 984 sq/ft height 8'

Second Floor: 560 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2"x6"

Bedroom Features

Main Floor Master Bedroom

Kitchen Features

Kitchen Island

Lot Characteristics

Suited For Narrow Lot

Suited For View Lot

Suited For Vacation Home

Rooms

3rd BR Closet:

8 sq/ft width 4' x depth 2'

Bathroom 2:

65 sq/ft width 9' x depth 7' 4"

Bedroom 2:

120 sq/ft width 12' x depth 10'

Bedroom 2 Closet:

20 sq/ft width 2' x depth 10'

Bedroom 3:

108 sq/ft width 12' x depth 9'

Bedroom 3 Closet:

20 sq/ft width 2' x depth 10'

Dining Room:

140 sq/ft width 12' x depth 11' 8"

Foyer:

21 sq/ft width 7' x depth 3'

Kitchen:

96 sq/ft width 9' 8" x depth 10'

Living Room:

199 sq/ft width 13' 4" x depth 15'

Master Bathroom:

133 sq/ft width 12' 6" x depth 10' 8"

Master Bedroom:

131 sq/ft width 10' 8" x depth 12' 4"

Master Closet:

13 sq/ft width 6' 8" x depth 2'

Porch - Rear:

216 sq/ft width 24' x depth 9'

Porch - Right:

224 sq/ft width 8' x depth 28'

What's Included In This Plan Set

See a sample plan set

Floor and ceiling heights
Dimensions of standard windows
Dimensions of roof overhangs
Location of all needed flashings (mention of “typical” in most cases)
Height and location of foundation indicated in dashed lines
Type of finishing and textures (we write siding, horizontal or vertical but not the company)
Dimension and height of chimney (dimensions yes but the height is determined by the local building code)

All exterior and interior dimensions
Thickness of foundation walls (if variable)
All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
Location of stairwell
Location and sizes of windows
Location and dimensions of footings (where applicable and required)

All interior and exterior dimensions (included but not as a schedule)
Location and sizes of doors and windows
Indication of the structure above (second floor or roof)
Indication of details that are available on other pages

Location of all the different trusses needed
The general overcharge of the roof compared to the floor footprint underneath

All the different floor and ceiling heights
Dimensions and design of trusses
Dimensions and details of overhand
Roof pitch on all truss sections

Roof sections
Sections of concrete wall with wood connection
Section of walls with particulars called out
Section of concrete porch and connection with wood frame
Foundation particulars in the garage entrance
Components of certain types of walls (ex: between garage and living quarters)

All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
Note: This plan does not include HVAC, electrical and plumbing.
