PLAN 70-1024

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

1509
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$335.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$68.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Mirror Reversed Sets
$63.75
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
NOW $827.05
You save $145.95 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 70-1024

Plan Description

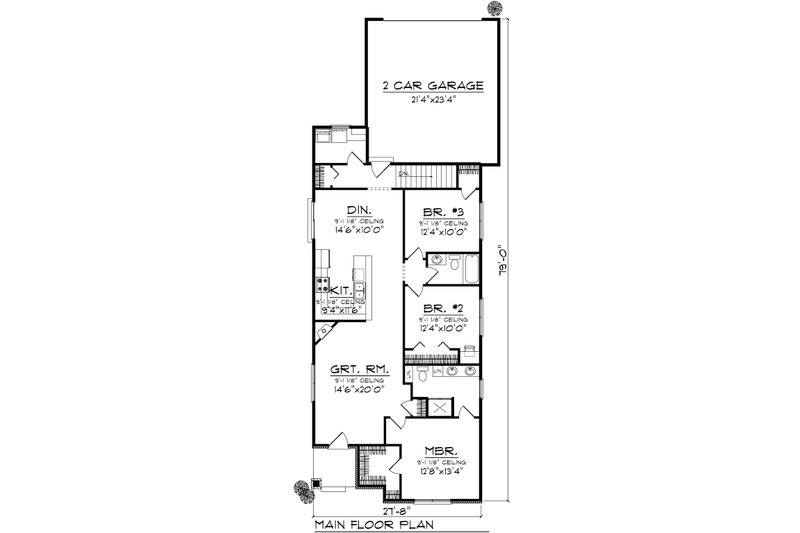

This arts and crafts design appears small from the front but pack all living space into a plan with garage access to the back making it perfect for a “neighborhood” development. Extra exterior details include corbels, shingle and stone siding and a support column in front. As you enter the home, you’ll love the spacious great room with corner fireplace directly in front of you. The kitchen follows and includes a breakfast bar that’s large enough to seat four and direct access to the dining room. Access to the garage lies in the laundry room directly behind the dining room. All three bedrooms lie to the left of the home beginning with the master that’s equipped with a walk-in closet and private bath. Two more bedrooms follow each with a Jack and Jill’s access to the main bath off the hall.

Full Specs & Features


Dimension

Depth : 79'

Height : 23' 7"

Width : 27' 8"

Area

First Floor: 1509 sq/ft height 9'

Garage: 519 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 47

Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Shake / Stone / Siding

Framing : 2 x 6

Insulation : R-19

Bedroom Features

Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Great Room Living Room

Garage Features

Rear Entry Garage

Rear Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Rooms

Basement Foundation:

2185 sq/ft width 27' 8" x depth 79'

Bedroom 2:

123 sq/ft width 12' 4" x depth 10'

Bedroom 2 Closet:

18 sq/ft width 8' 9" x depth 2' 1"

Bedroom 3:

123 sq/ft width 12' 4" x depth 10'

Bedroom 3 Closet:

12 sq/ft width 3' 4" x depth 3' 8"

Dining Room:

145 sq/ft width 14' 6" x depth 10'

Garage:

497 sq/ft width 21' 4" x depth 23' 4"

Great Room:

290 sq/ft width 14' 6" x depth 20'

Laundry Room:

46 sq/ft width 8' 3" x depth 5' 7"

Master Bathroom:

90 sq/ft width 10' 10" x depth 8' 4"

Master Bedroom:

168 sq/ft width 12' 8" x depth 13' 4"

Master Closet:

40 sq/ft width 6' 6" x depth 6' 3"

Porch - Front:

48 sq/ft width 7' 4" x depth 6' 8"

What's Included


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
