Plan Description

Perfect for an alley lot, this charming country home embraces a craftsman curb appeal that will please your family and friends. The main living area of the home includes a great room with fireplace, a formal dining room and finally a kitchen with breakfast bar overlooking both. The bedroom suite lies on the opposite side of the home as you enter and includes a master suite with walk-in closet and private bath, and two additional bedrooms with a shared full bath just off the hall. The garage is located at the rear of the home is large enough for two vehicles. At just under 1,500 square feet, this home has a unique charm thatâ€™s hard to beat.

Floor Plans

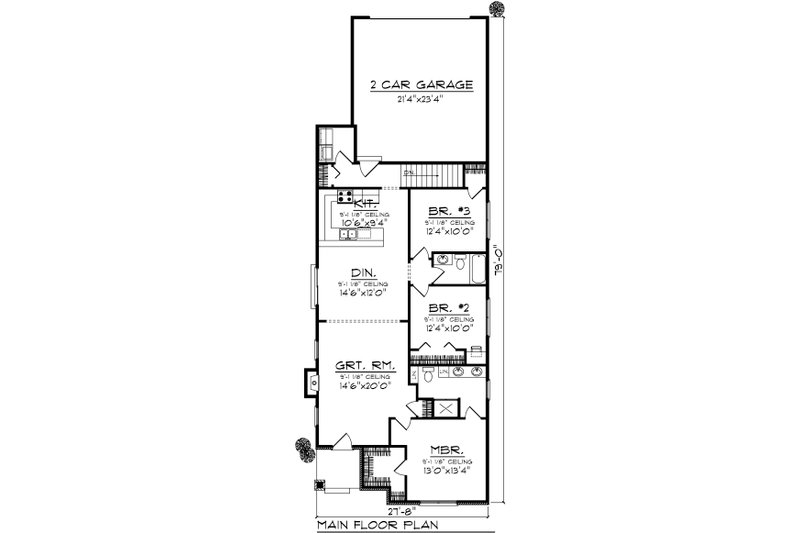

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 79'

Height : 20'

Width : 27' 8"

Area

First Floor: 1493 sq/ft height 9'

Garage: 516 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 47

Exterior Wall Framing

Exterior Wall Finish : Shake / Stone / Siding

Framing : 2 x 6

Insulation : R-19

Bedroom Features

Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Great Room Living Room

Garage Features

Rear Entry Garage

Rear Garage

Lot Characteristics

Zero Lot Lines

Outdoor Spaces

Covered Front Porch

Rooms

Basement Foundation:

2185 sq/ft width 27' 8" x depth 79'

Bedroom 2:

123 sq/ft width 12' 4" x depth 10'

Bedroom 2 Closet:

18 sq/ft width 8' 9" x depth 2' 1"

Bedroom 3:

123 sq/ft width 12' 4" x depth 10'

Bedroom 3 Closet:

12 sq/ft width 3' 4" x depth 3' 8"

Dining Room:

174 sq/ft width 14' 6" x depth 12'

Garage:

497 sq/ft width 21' 4" x depth 23' 4"

Great Room:

290 sq/ft width 14' 6" x depth 20'

Kitchen:

97 sq/ft width 10' 6" x depth 9' 4"

Laundry Room:

30 sq/ft width 5' 5" x depth 5' 7"

Master Bathroom:

90 sq/ft width 10' 10" x depth 8' 4"

Master Bedroom:

173 sq/ft width 13' x depth 13' 4"

Master Closet:

40 sq/ft width 6' 6" x depth 6' 3"

Porch - Front:

48 sq/ft width 7' 4" x depth 6' 8"

What's Included In This Plan Set

See a sample plan set

Plans are typically drawn to ¼” scale and include:

Cover Sheet: Cover sheet with front rendering
Foundation Plan(s): Foundation plans at 1/4" = 1' scale
Floor Plan(s): Floor plans at 1/4" = 1' scale
Exterior Elevations: Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Building Section(s): Building sections and details as required to construct the individual design
Electrical Plan(s): Schematic electrical plans with suggested switch, outlet, and light fixture locations
Kitchen Cabinet Elevation(s): Interior elevation of cabinets at 1/4" = 1' scale
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Specification(s): General specification design notes
