PLAN 124-769

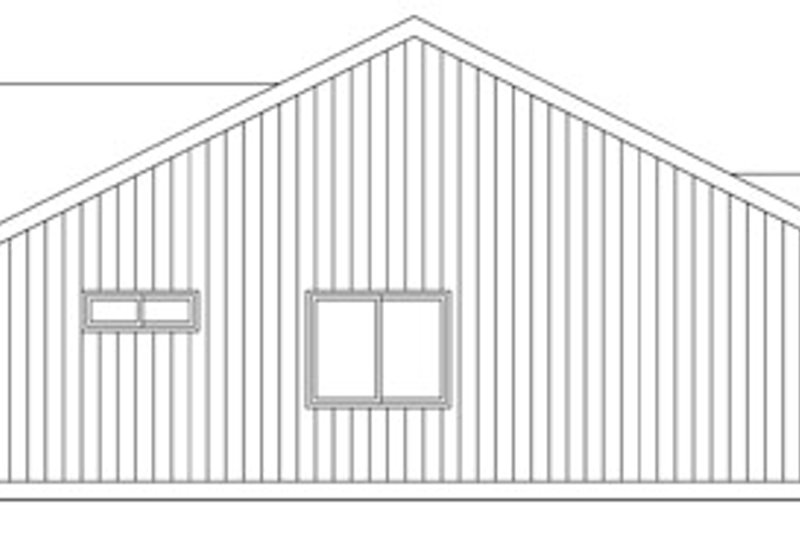

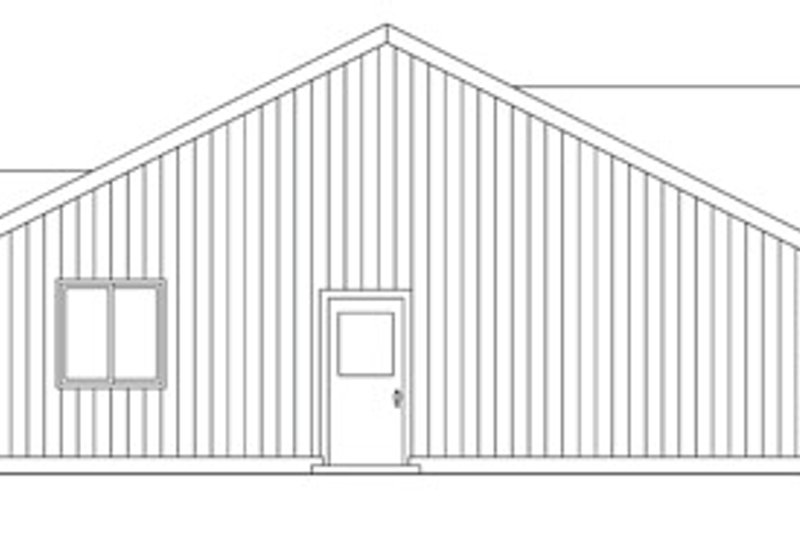

Ranch Exterior - Other Elevation Plan #124-769

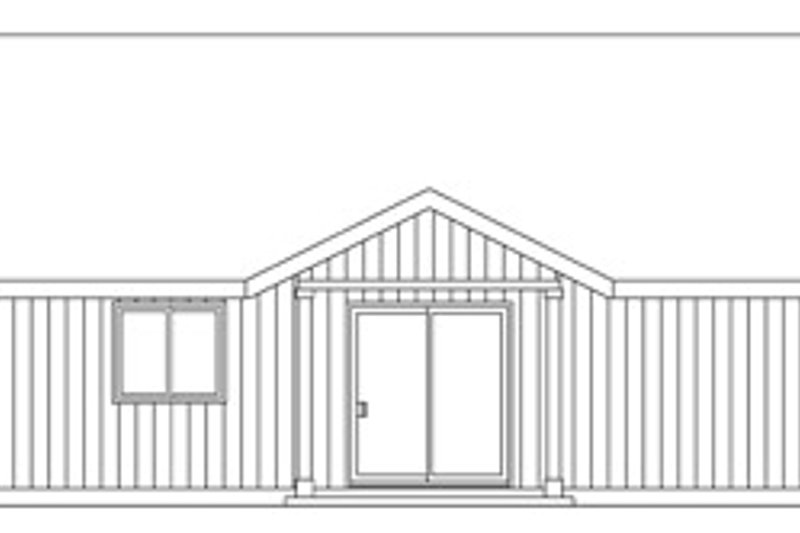

Ranch Exterior - Rear Elevation Plan #124-769

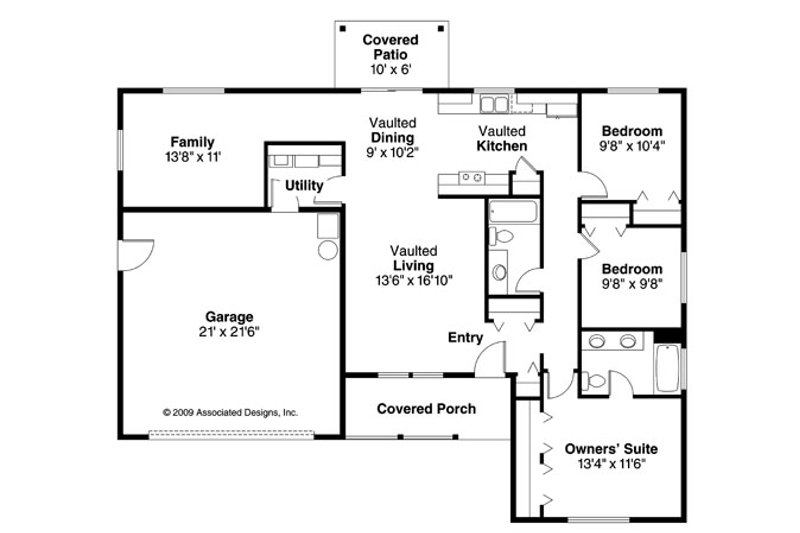

Ranch Floor Plan - Main Floor Plan Plan #124-769

Key Specs

1434
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

	Right-Reading Reverse $135.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $45.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $90.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $760.50

You save $84.50

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-800-528-8070

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-528-8070

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for Free

Click to Get Your Trend Report

PLAN 124-769

Key Specs

1434
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

An old fashioned porch welcomes family and friends to this contemporary version of the traditional country-style ranch home. Inside, three vaulted, interconnected gathering spaces flow together at the heart of the home, expanding the entire space, front to back. Closets line one entire wall in the owners' suite, and its bathroom has a double vanity.

Floor Plans

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 48'
Height : 18'
Width : 55'

Area

First Floor: 1434 sq/ft height 8'
Garage: 476 sq/ft height 8'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 6:12
Roof Framing : 2x6
Roof Load : 25
Roof Type : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom

Kitchen Features

Breakfast Nook
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Economical To Build

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural 1st Floor Framing
Structural Roof Framing

Rooms

Bedroom 2:

99 sq/ft width 9' 8" x depth 10' 4"

Bedroom 3:

93 sq/ft width 9' 8" x depth 9' 8"

Dining Room:

91 sq/ft width 9' x depth 10' 2"

Family Room:

150 sq/ft width 13' 8" x depth 11'

Garage:

451 sq/ft width 21' x depth 21' 6"

Living Room:

227 sq/ft width 13' 6" x depth 16' 10"

Master Suite:

153 sq/ft width 13' 4" x depth 11' 6"

What's Included In This Plan Set

See a sample plan set

Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.

» See important information before purchasing.

Questions? Call 1-800-528-8070

Plan Set

PDF Print Set : $760.50	A non-modifiable, print only PDF file
5 Copy Set : $850.50	5 printed plan sets mailed to you.
8 Copy Set : $895.50	8 printed plan sets mailed to you.
PDF Master Set : $1494.00	An unlocked, modifiable PDF file
CAD Set : $1660.50	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set : $549.00	One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab: $157.50	Ideal for level lot, single layer concrete poured directly on grade.
Basement: $225.00	Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Right-Reading Reverse : $135.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $45.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $90.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $35.10	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $90.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
