PLAN 8-284
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
This southern design floor plan is 1389 sq ft and has 2 bedrooms and 2 bathrooms.
Floor Plans

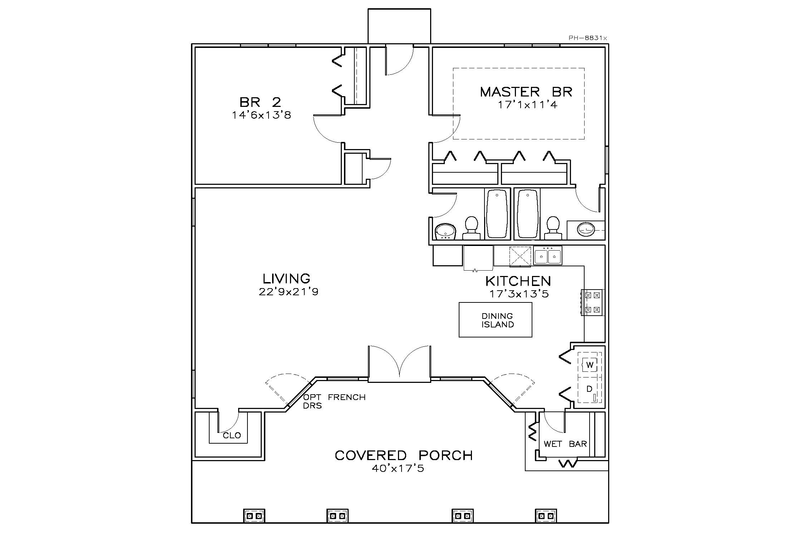

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 46'
Height : 24'
Width : 40'
Area
Main Floor : 1389 sq/ft
Porch : 451 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Main Floor Laundry
Wet Bar
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
More
Empty Nester
Unusual Shape
Rooms
Master Bedroom:
width 17' 1" x depth 13' 8"
What's Included In This Plan Set
- Title Sheet - Isometric of Front Elevation
- Concrete Slab Foundation Plan ‐ shows the foundation plan and details. ¼” = 1’-0. (Optional crawlspace with similar details)
- Floor Plan(s) ‐ shows the placement of interior walls and the dimensions for rooms, doors/sizes, windows/sizes, stairways, etc. of each level of the house. ¼” = 1’-0 scale
- Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches. ¼” = 1’-0
- Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the general construction of the home, insulation, studwalls, rafters, etc,
- Interior Elevations Millwork ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.
- Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers.
- Roof Framing Plan - provides guideline for rafters, ridges, hip framing
- Electrical Plan ‐ suggested schematic shows the locations for fixtures, outlets, switches, fans, lighting, etc.
- Notes & Details ‐ per IRC 2015
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$714.00
$714.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1190.00
$1190.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$255.00
$255.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Right-Reading Reverse:
$85.00
$85.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$85.00
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$85.00
$85.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$63.75
$63.75
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
