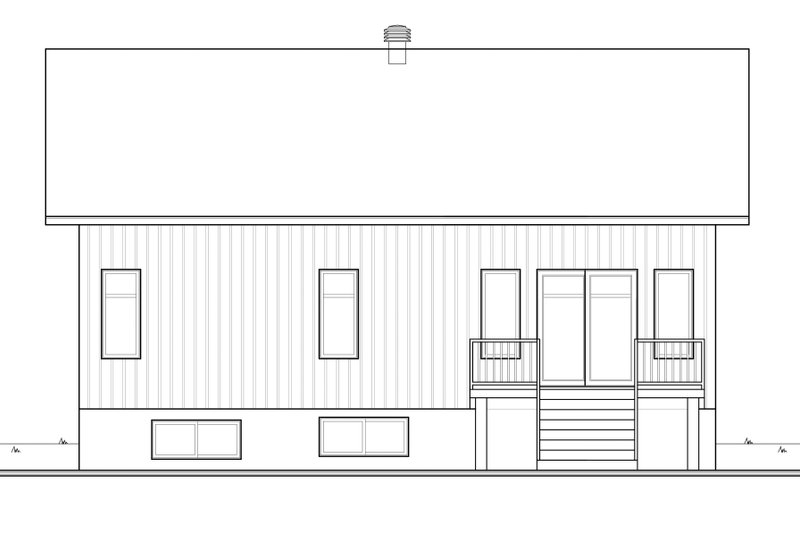

House Plan Design - Craftsman Exterior - Rear Elevation Plan #23-2305

Key Specs

1339
sq ft

2
Beds

1
Baths

1
Floors

1
Garages

Select Plan Set Options

What's included?

	Right-Reading Reverse $135.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $90.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $949.50

You save $105.50

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Cost to Build Reports Only $19.99 for a Limited Time!

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-528-8070

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 23-2305

Key Specs

1339
sq ft

2
Beds

1
Baths

1
Floors

1
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

From the first step into this lovely transitional house plan, you enter a hall whose ceiling is more than 15 'in height, giving an amplitude to this area. This entry hall has a coat closet and a direct access to the one-car garage. Additionally, the skylight wisely positioned in this area, provides lots of natural light, reflected also in the open floor plan family area. The good size kitchen is also taking advantage of the natural light and the view of the backyard as this house boosts an open floor plan to the kitchen, dining and living room. A washer / dryer closet is situated away from the kitchen, but not far from the latter. Two good size bedrooms allow good size beds (queen or king), and one of them could even be converted into a guest room, gym or home office, as needed. The bathroom has a separate bathtub and shower (shower 64po 44po x) and private toilet room. The garage is 14ft x 20ft with high ceiling (over 10ft.).

Floor Plans

Floor Plan - Main Floor

Reverse

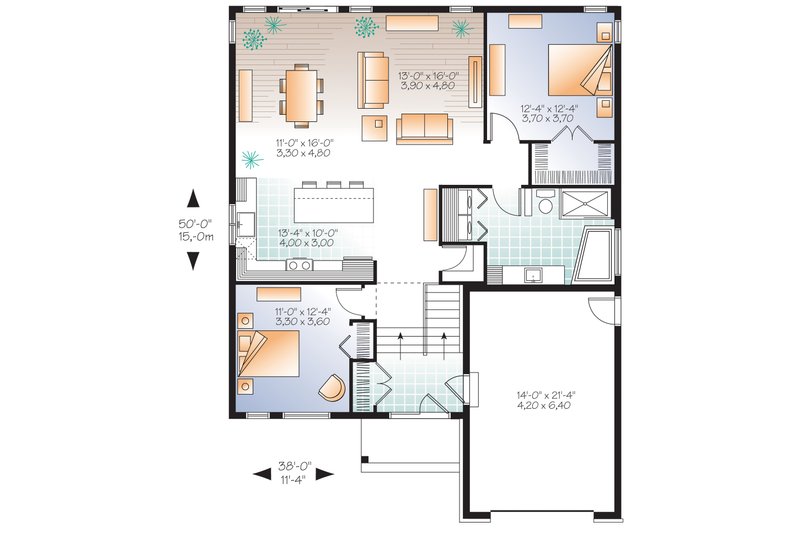

House Plan Design - Craftsman Floor Plan - Main Floor Plan #23-2305

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 50'
Height : 22' 2"
Width : 38'

Area

Main Floor : 1339 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 6:12
Roof Framing : Truss

Exterior Wall Framing

Framing : 2X6

Bedroom Features

Walk In Closet

Kitchen Features

Kitchen Island

Outdoor Spaces

Covered Front Porch

What's Included In This Plan Set

See a sample plan set

Exterior Elevations (front, rear, left & right sides) typically include:

Floor and ceiling heights
Dimensions of standard windows
Dimensions of roof overhangs
Location of all needed flashings
Height and location of foundation indicated in dashed lines
Type of finishing and textures
Dimension and height of chimney

Foundation plans typically include:

All exterior and interior dimensions
Thickness of foundation walls (if variable)
All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
Location of stairwell
Location and sizes of windows
Location and dimensions of footings (where applicable and required)

Floor plan(s) typically include:

All interior and exterior dimensions
Location and sizes of doors and windows
Types of interior doors that correspond to a schedule
Indication of the structure above (second floor or roof)
Location of columns, beams and floor joists, including dimensions
Indication of details that are available on other pages

Roof plans typically include:

Location of all the different trusses needed
The general overcharge of the roof compared to the floor footprint underneath
Location of ridges and valleys

Building cross-section(s) and truss details typically include:

All the different floor and ceiling heights
Dimensions and design of trusses
Dimensions and details of overhand
Roof pitch on all truss sections

Construction details typically include:

Roof sections
Sections of concrete wall with wood connection
Section of walls with particulars called out
Section of concrete porch and connection with wood frame
Foundation particulars in the garage entrance
Components of certain types of walls (ex: between garage and living quarters)

Typical wall sections typically include;

All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
Note: This plan does not include an electrical layout.

» See important information before purchasing.
