PLAN 932-574
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Floor Plans

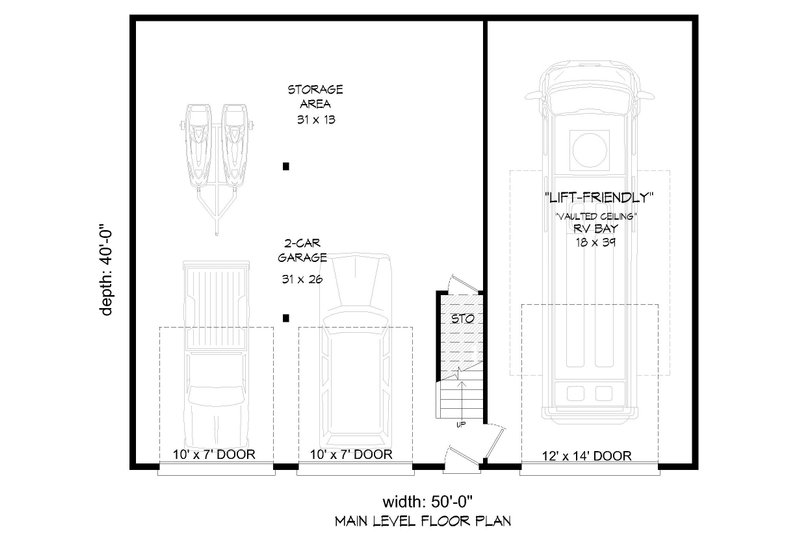

Floor Plan - Main Floor

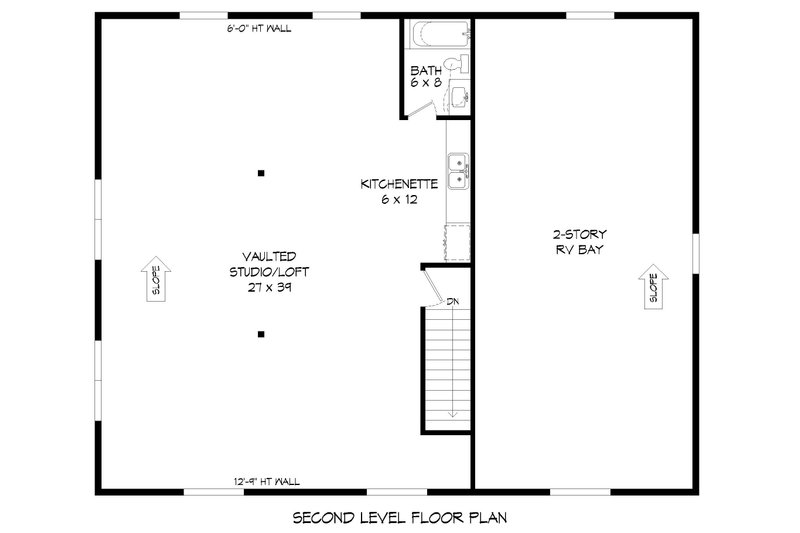

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 40'
Height : 23' 1"
Width : 50'
Area
Garage : 2000 sq/ft
Upper Floor : 1258 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : 2nd floor is vaulted with ceiling heights from 6'-0" to 12'-9" height
Main Ceiling : 8'
Roof
Primary Pitch : 2:12
Roof Framing : gable
Roof Load : 30
Roof Type : coventional
Exterior Wall Framing
Framing : 2x6
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Loft
Storage Area
Workshop
Garage Features
Front Entry Garage
RV Garage
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
