PLAN 60-1014
Photographs may show modified designs.
Get Personalized Help
Key Specs
1242
sq ft
4
Beds
3.5
Baths
1
Floors
2
Garages
WOW!
Cost to Build Reports
are Only $4.99
with Code CTB2023 (limit 1)
with Code CTB2023 (limit 1)
This report will provide you cost estimates based on location and building materials.
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours: Mon - Fri 9:00 - 8:30 (EDT)
See our Terms & Conditions and Privacy Policy.
PLAN 60-1014
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Floor Plans

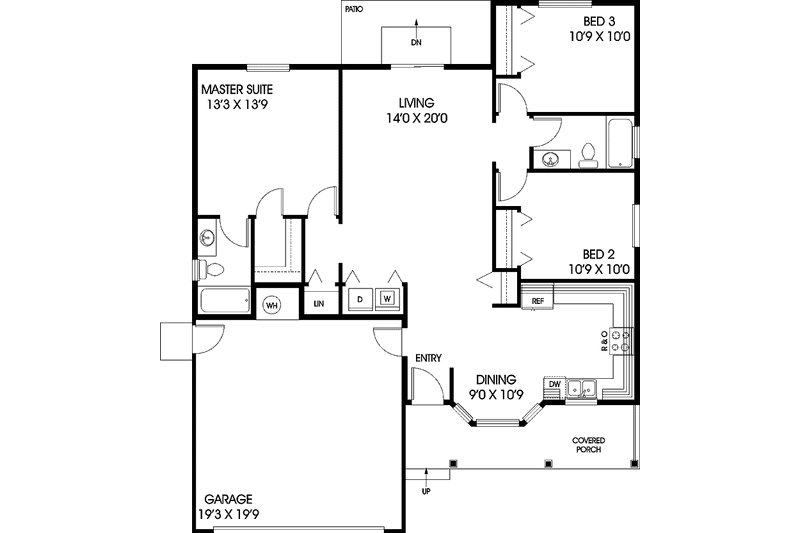

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 50'
Height : 20'
Width : 42'
Area
First Floor: 1242 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Rooms
Dining Room:
96 sq/ft width 9' x depth 10' 9"
Garage:
380 sq/ft width 19' 3" x depth 19' 9"
Living Room:
280 sq/ft width 14' x depth 20'
Master Suite:
182 sq/ft width 13' 3" x depth 13' 9"
What's Included In This Plan Set
- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
