PLAN 932-603
Photographs may show modified designs.
Get Personalized Help
Key Specs
3000
sq ft
0
Beds
0
Baths
1
Floors
8
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours: Mon - Fri 8:30 - 8:30 (EDT)
See our Terms & Conditions and Privacy Policy.
PLAN 932-603
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Modify This Plan
Floor Plans

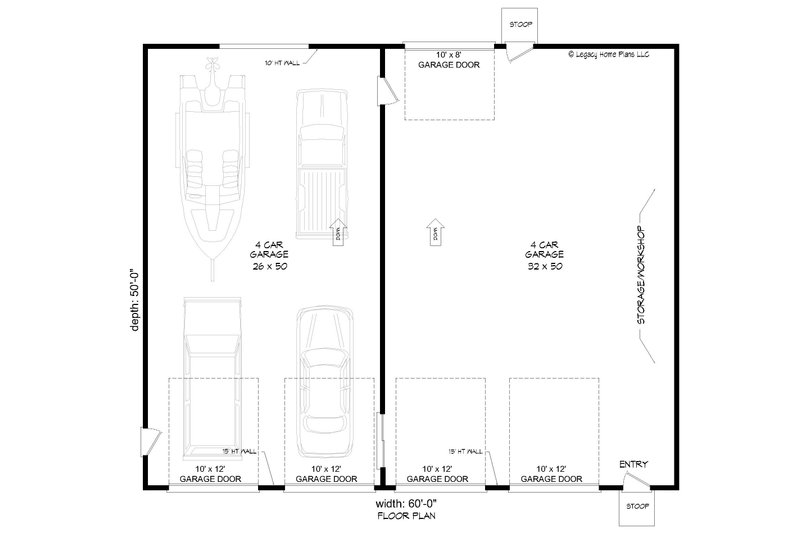

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 50'
Height : 16' 9"
Width : 60'
Area
Main Floor : 3000 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : vaulted ceiling garage ranging from 10'-0" to 15'-0"
Main Ceiling : 10'
Roof
Roof Type : gable
Exterior Wall Framing
Exterior Wall Finish : siding
Framing : 2 x 6
Additional Room Features
Storage Area
Workshop
Garage Features
Front Entry Garage
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$1854.00
$1854.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1944.00
$1944.00
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$2034.00
$2034.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Study Set:
$1674.00
$1674.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Daylight Basement:
$7000.00
$7000.00
Ideal for sloping lot, lower level of home partially underground.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Wood 2x4:
$175.00
$175.00
Wood 2x4 Exterior Walls
Additional Options
Right-Reading Reverse:
$175.00
$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Mirror Reversed Sets:
$50.00
$50.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
