PLAN 455-661
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description

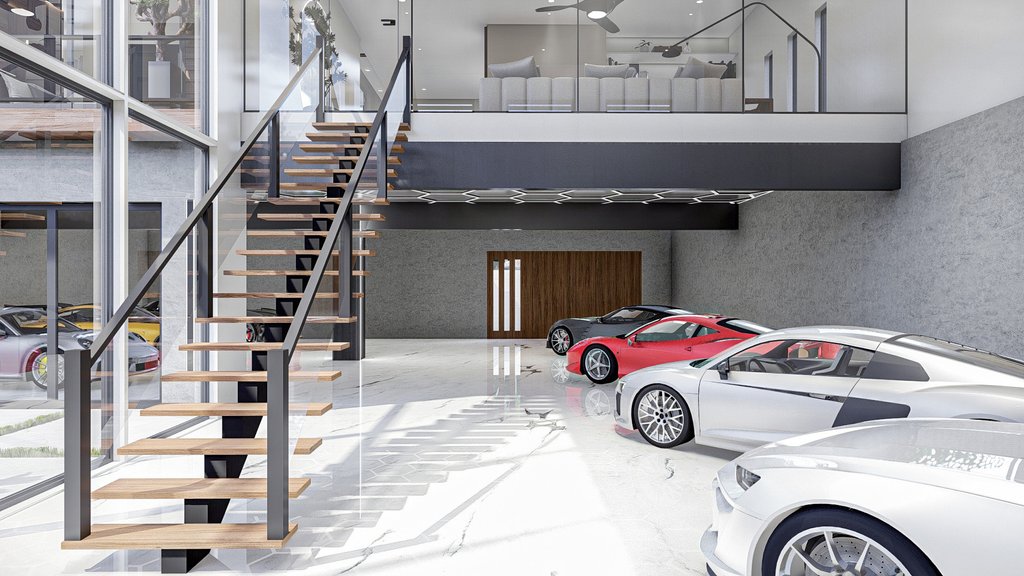

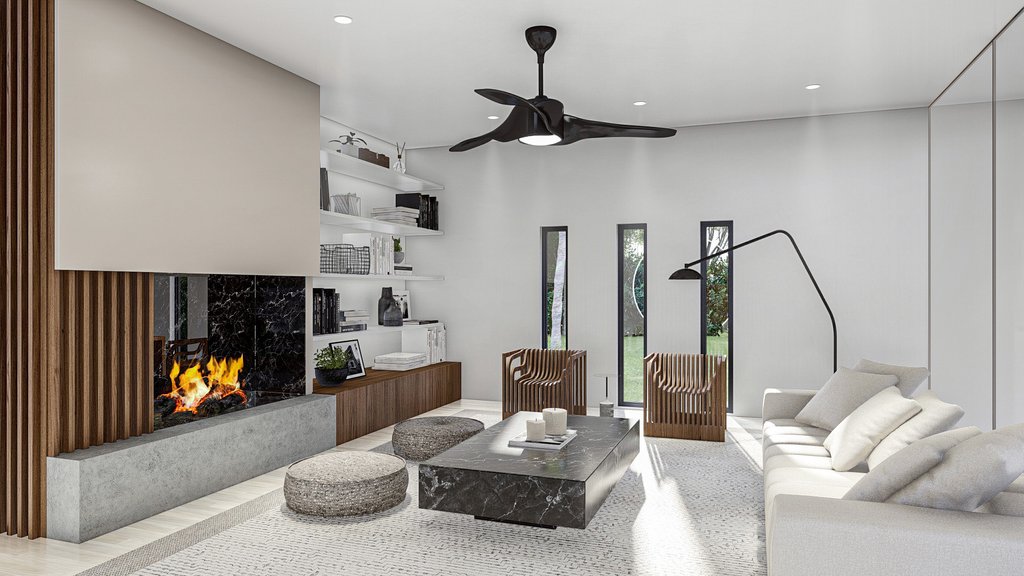

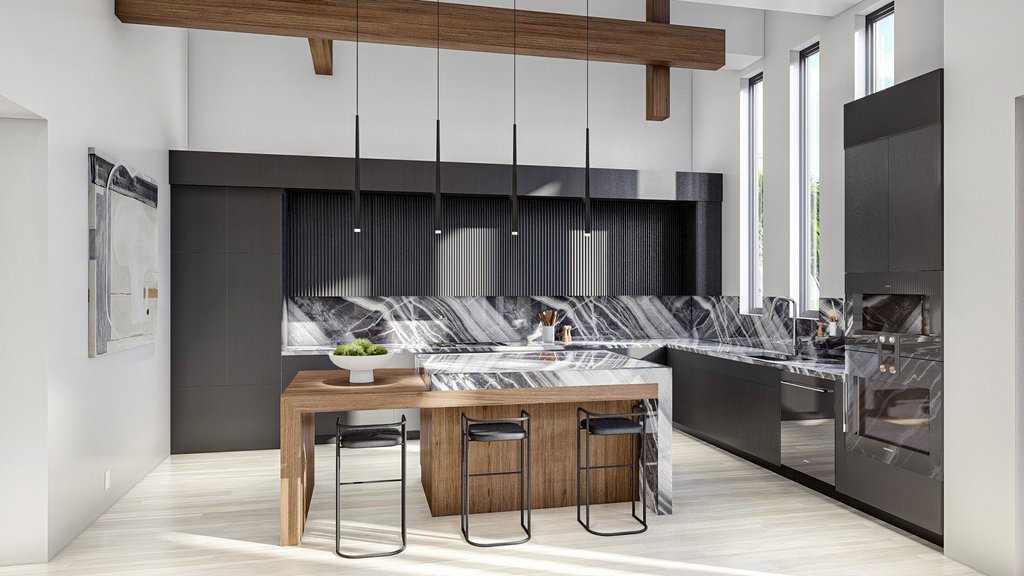

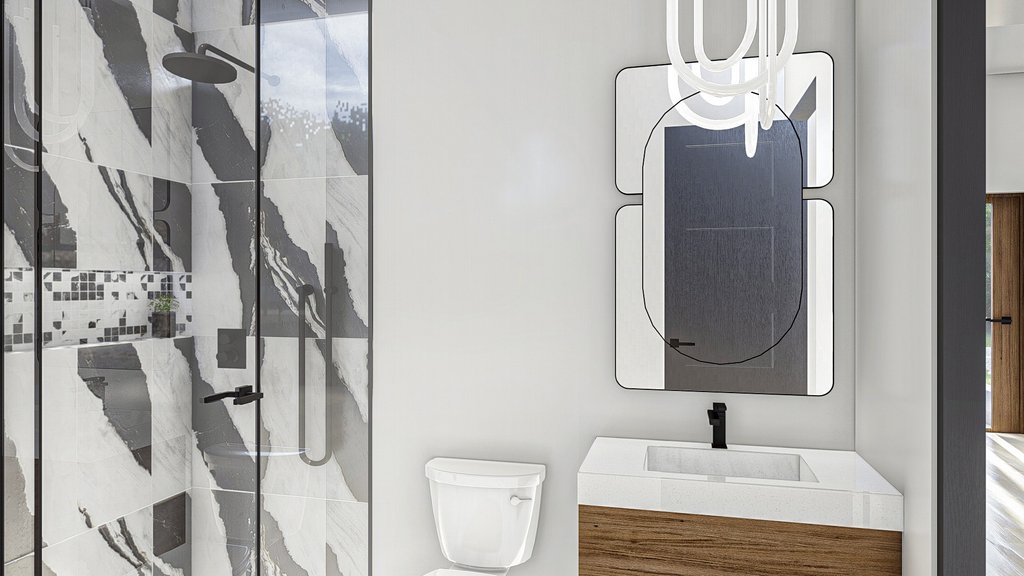

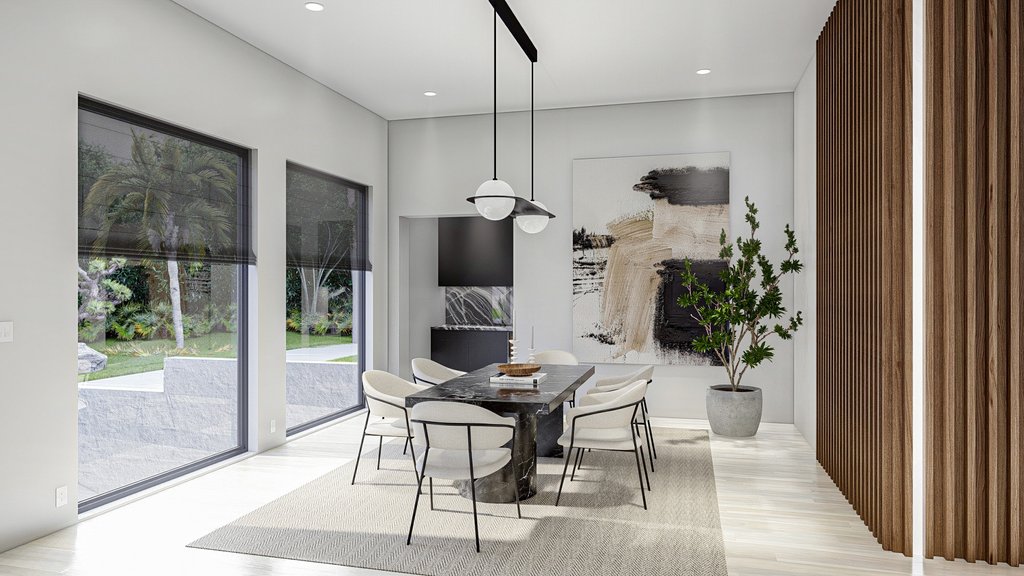

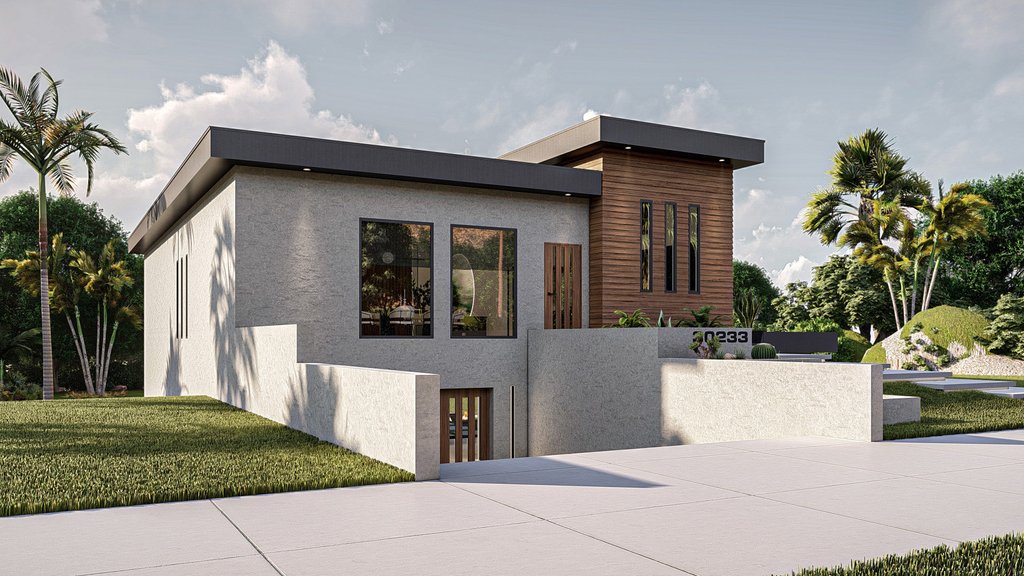

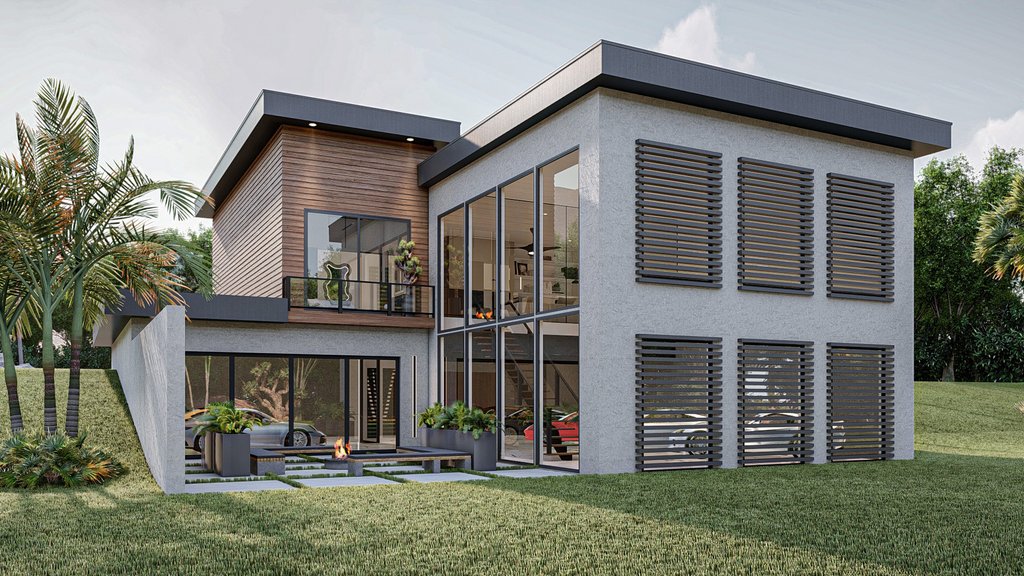

The sleek, modern design of this home is sure to impress, making it every car-lovers dream. This apartment garage includes 1797 square feet of living space on the main floor and 2828 square feet of garage space below. Entering on the main floor, you will be greeted by an open concept. The full kitchen on the right, and a large dining on the left. A butlers pantry and laundry room are also on this side of the home. Step in a bit further and you will find a hall bath along with a bedroom that has a large slider door and a balcony. Back in the main living space is a fireplace with built-ins on one side. The ultimate focus of this great room is the large glass wall that overlooks the showroom. Stairs connecting the great room to the garage below are closed off by a glass door. Below is 2828 square feet of garage space. The large walkout windows help bring in plenty of natural light to show off your most prized possessions.
Floor Plans

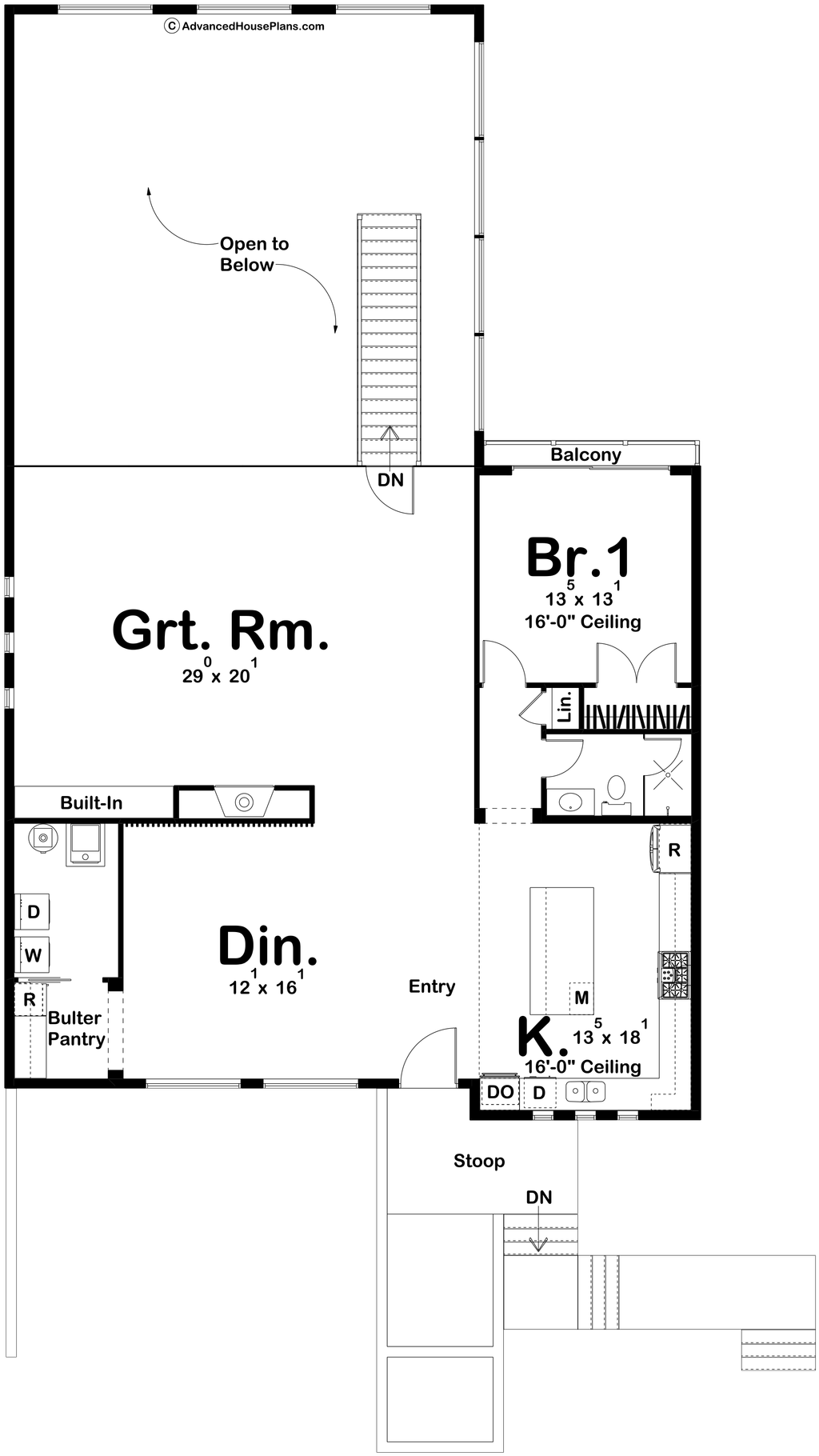

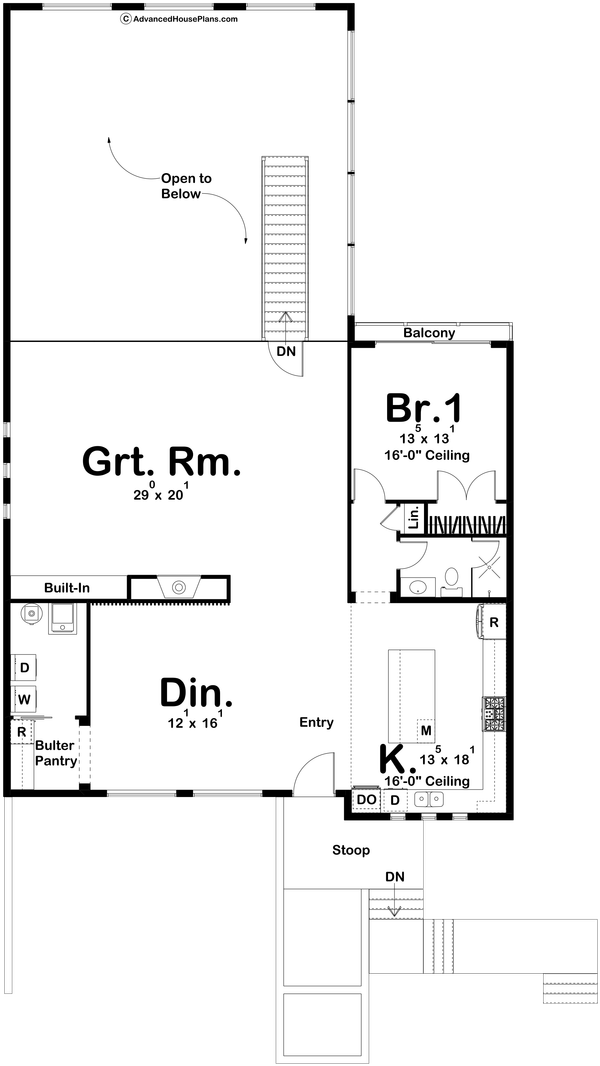

Floor Plan - Main Floor

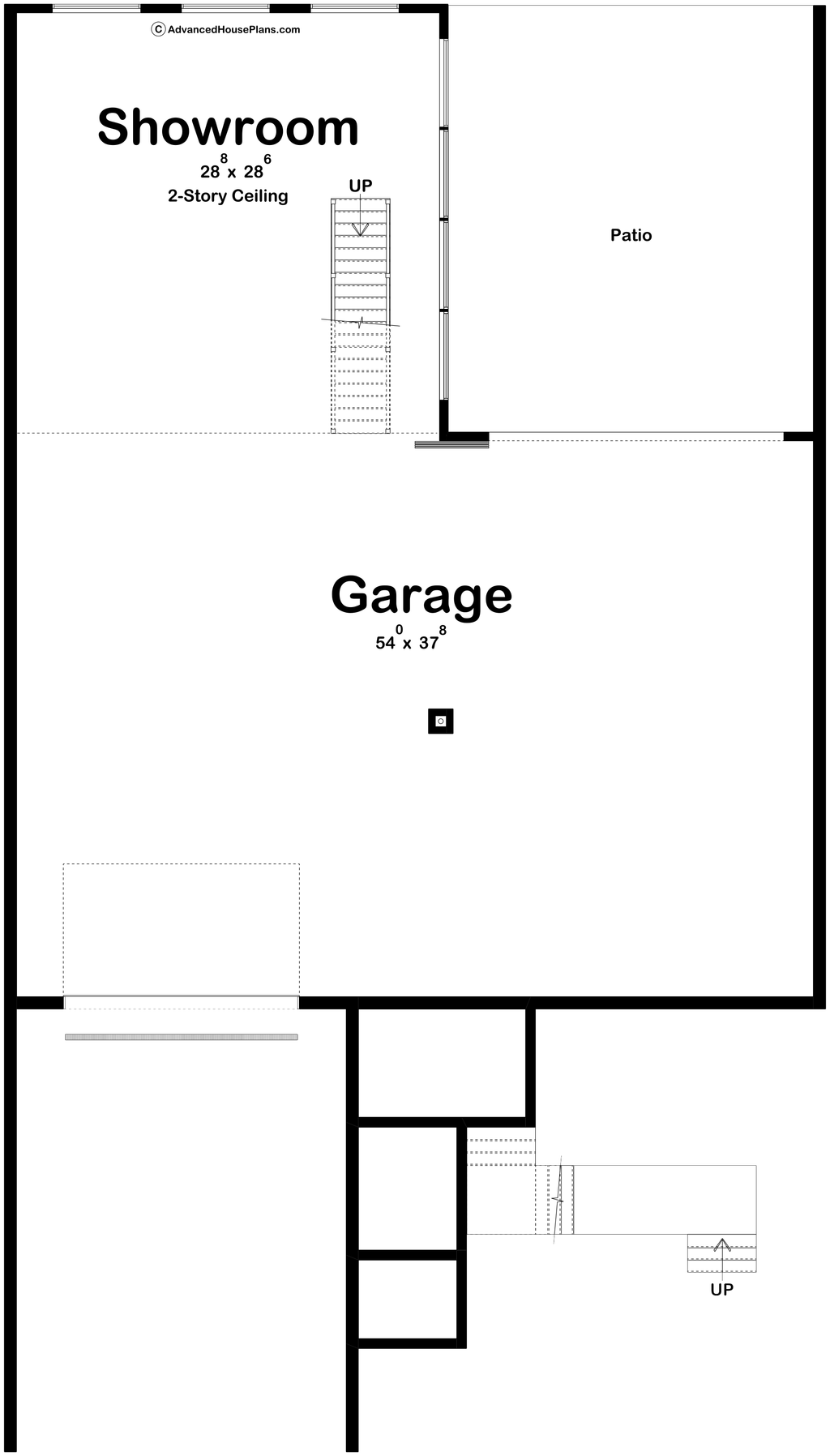

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 98'
Height : 18' 2"
Width : 55' 8"
Area
Garage : 2828 sq/ft
Main Floor : 1797 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : The showroom features a 2-story ceiling. The kitchen and bedroom 1 feature 16'-0" ceilings.
Main Ceiling : 12'
Roof
Primary Pitch : Flat
Roof Framing : Trusses
Exterior Wall Framing
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Walk In Closet
Kitchen Features
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Garage Under
Lot Characteristics
Suited For Corner Lot
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$1499.00
$1499.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1794.00
$1794.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$2098.00
$2098.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$2498.00
$2498.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Walk Out Basement:
$0.00
$0.00
Ideal for a sloping lot, lower level with outdoor access.
Basement:
$299.00
$299.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$299.00
$299.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$299.00
$299.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$299.00
$299.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$59.00
$59.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$299.00
$299.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
